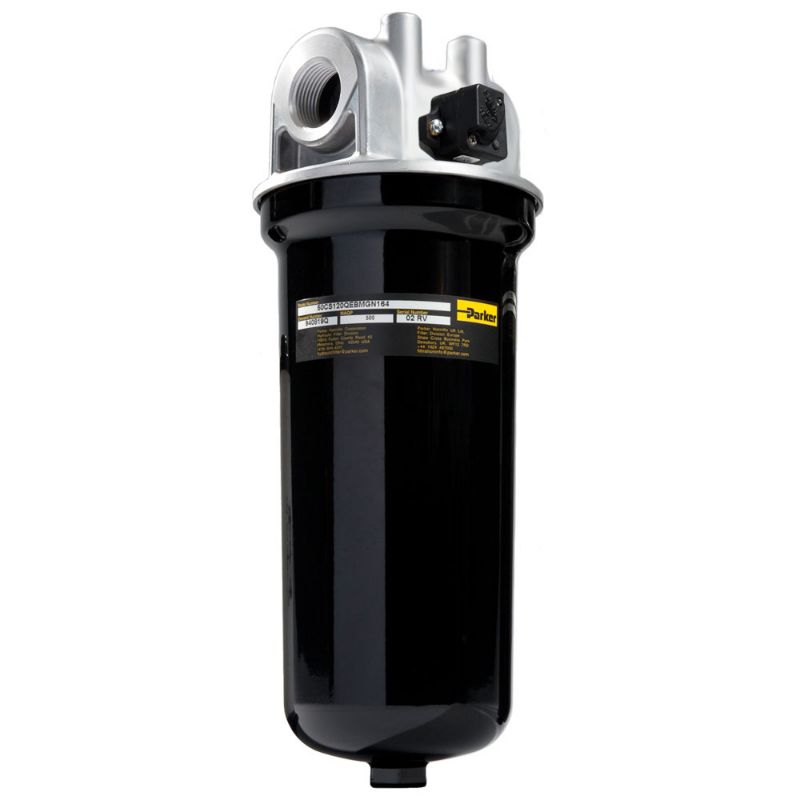

Parker 50CS110QEBMKS201 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50CS110QEBMKS201

$451.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	225.0 °F
Options	No options	Indicator Pressure Setting	3.5 bar
Indicator Type	Visual with push to test, right	Micron Rating	10Q Microglass
Bypass Valve Pressure Rating	50.0 psid	Product Style	Hydraulic Filter
Flow Rate	208.0 L/min	Product Type	Hydraulic Filter
Housing Material	Aluminum	Compatible Element	940818Q
Seal Material	Nitrile	Port Type	SAE-20 integral threads
Weight	2.7 kg	Mounting Style	Inline
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Coreless	Pressure Rating	34.5 bar
Seal Material	Nitrile	Options	No options
Indicator Type	Visual with push to test, right	Micron Rating	10Q Microglass
Bypass Valve Pressure Rating	50 psid (3.5 bar)	Flow Rate	55 GPM (208 LPM)
Port Connection Type	SAE-20 integral threads
