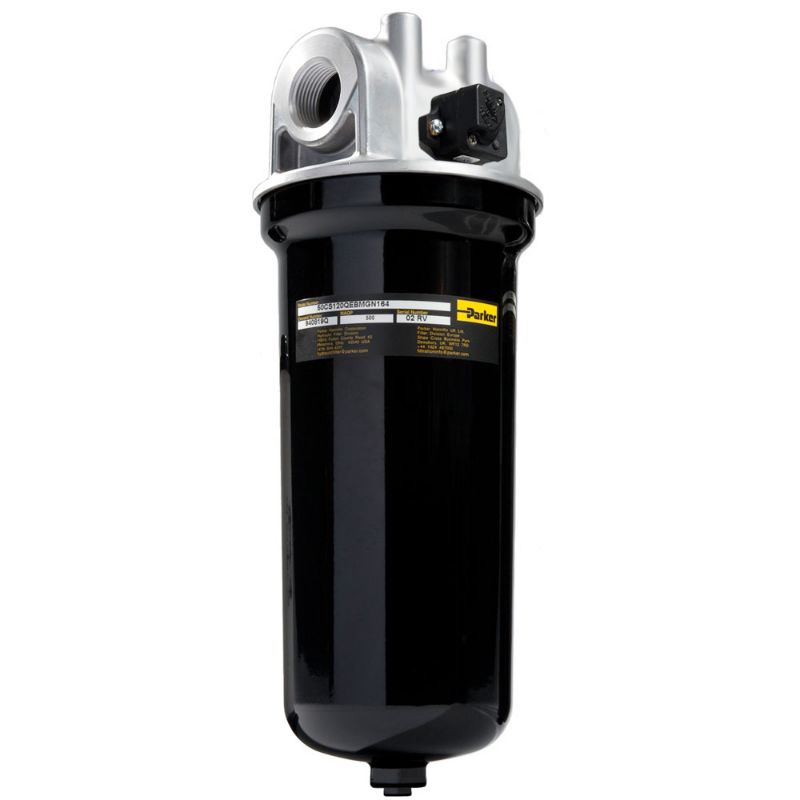

Parker 50CS105QEBMLGS164 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50CS105QEBMLGS164

$485.29

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Aluminum
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Bypass Valve Pressure Rating	1.7 bar	Indicator Type	Visual with push to test, left
Pressure Rating	34.5 bar	Filter Element Type	Coreless
Indicator Pressure Setting	1.7 bar	Maximum Operating Temperature	225.0 °F
Micron Rating	05Q Microglass	Product Style	Hydraulic Filter
Mounting Style	Inline	Flow Rate	55.0 Gal/min
Weight	2.7 kg	Options	Drain port
Port Type	SAE-16 integral threads	Compatible Element	940817Q
Seal Material	Nitrile	Indicator Type	Visual with push to test, left
Micron Rating	05Q Microglass	Bypass Valve Pressure Rating	25 psid (1.7 bar)
Options	Drain port	Flow Rate	55 GPM (208 LPM)
Port Connection Type	SAE-16 integral threads
