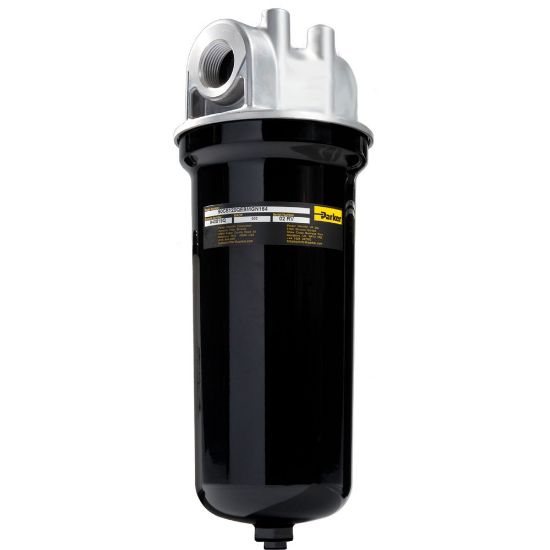

Parker 50CS102QEBNKS204 - Medium Pressure Inline Filter 12CS/50CS Series

The Parker 12CS/50CS Coreless Medium Pressure Spin-On Filter Series are the Smart Alternative to Spin-on Cans. Max allowable operating pressure of 500 PSI/34.5 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50CS102QEBNKS204

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Housing Material	Aluminum	Seal Material	Nitrile
Product Type	Hydraulic Filter	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	No indicator
Pressure Rating	500 psi	Filter Element Type	Coreless
Indicator Pressure Setting	3.5 bar	Bypass Valve Pressure Rating	50.0 psid
Maximum Operating Temperature	225.0 °F	Micron Rating	02Q Microglass
Product Style	Hydraulic Filter	Mounting Style	Inline
Flow Rate	208.0 L/min	Weight	2.7 kg
Options	Drain port	Port Type	SAE-20 integral threads
Compatible Element	940816Q	Seal Material	Nitrile
Indicator Type	No indicator	Micron Rating	02Q Microglass
Bypass Valve Pressure Rating	50 psid (3.5 bar)	Options	Drain port
Flow Rate	55 GPM (208 LPM)	Port Connection Type	SAE-20 integral threads
