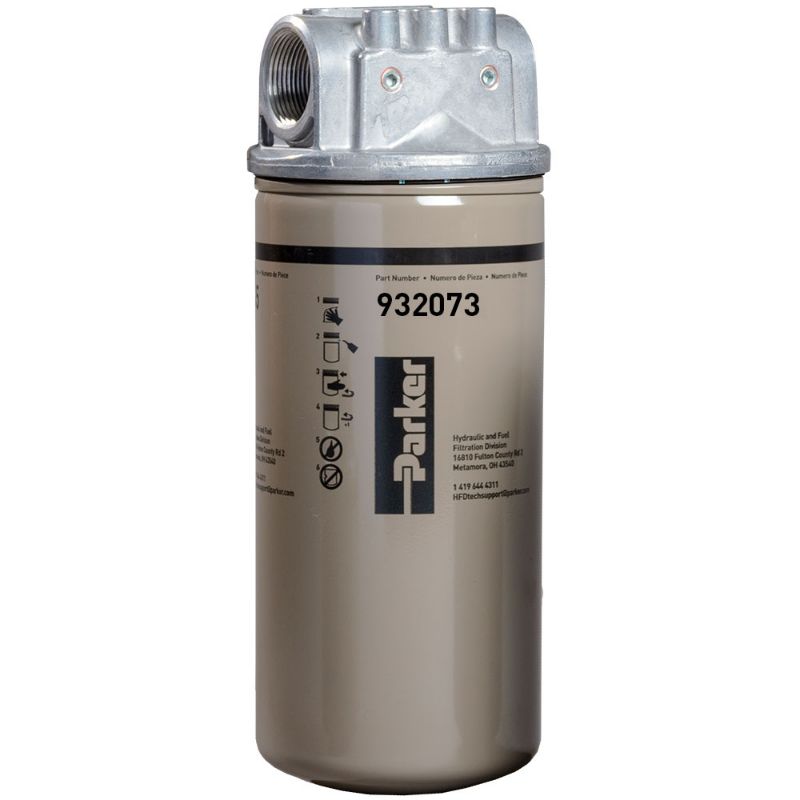

Parker 50AT203BBPXN20H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50AT203BBPXN20H

$206.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Inline
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Bypass Valve Pressure Rating	No Bypass	Maximum Operating Temperature	107
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Indicator Type	Sold separately	Pressure Rating	10.3
Housing Material	Low Carbon Steel	Filter Element Type	Canister
Indicator Pressure Setting	No Bypass	Flow Rate	136
Port Type	1-1/4" NPT ports	Weight	2.18
Compatible Element	932073	Seal Material	Nitrile
Bypass Valve (psi)	No Bypass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Indicator Type	Sold separately	Filter Element	3 micron microglass
Port Connection Type	1-1/4" NPT ports	Flow Rate (gpm)	43
