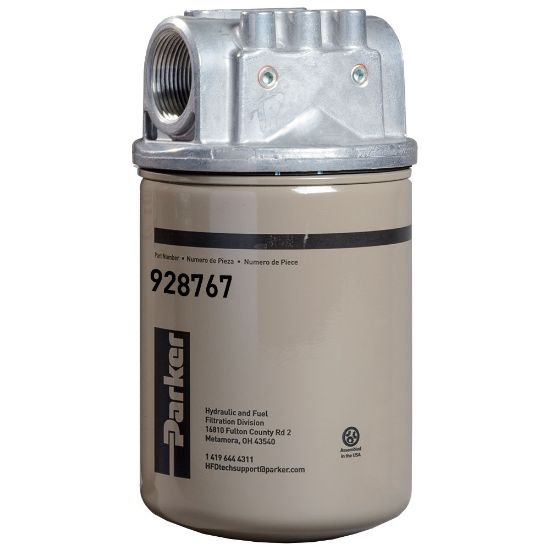

Parker 50AT120BBPGN20H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 50AT120BBPGN20H

$162.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	20 micron microglass	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Pressure Rating	150	Maximum Operating Temperature	107
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Indicator Pressure Setting	1.4
Mounting Type	Inline	Indicator Type	Sold separately
Bypass Valve Pressure Rating	25	Flow Rate	36
Housing Material	Low Carbon Steel	Compatible Element	928767
Seal Material	Nitrile	Port Type	1-1/4" NPT ports
Weight	3.9	Seal Material	Nitrile
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element	20 micron microglass
Indicator Type	Sold separately	Bypass Valve (psi)	25
Flow Rate (gpm)	36	Port Connection Type	1-1/4" NPT ports
