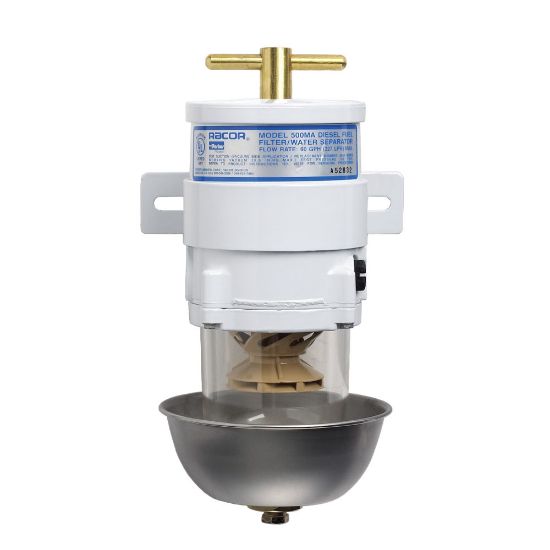

Parker 503MA10 - Marine Fuel Filter Water Separator – Racor Turbine Series

The Racor Marine Fuel Filter Water Separator Turbine Series is a UL-approved filtration system that offers maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 503MA10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Racor	Connection Type	3/4"-16 UNF-2B SAE Female
Catalog Number	See RSL0289	Series or Model Replaced	Replaced by 500MA10
Division	Engine Mobile Original Equipment Division	Application	Marine Filtration
Location	North America and EMEA regions	Bowl Type	Bowl: Clear Engineering Plastic with Stainless Steel Shield
Valve Type	None	Product Type	OBSOLETE Marine Turbine Housing
Micron Rating	98% @ 10 Micron	Flow Rate	60 gph (227 lph)
Part Type	500 Marine Single Turbine Assembly
