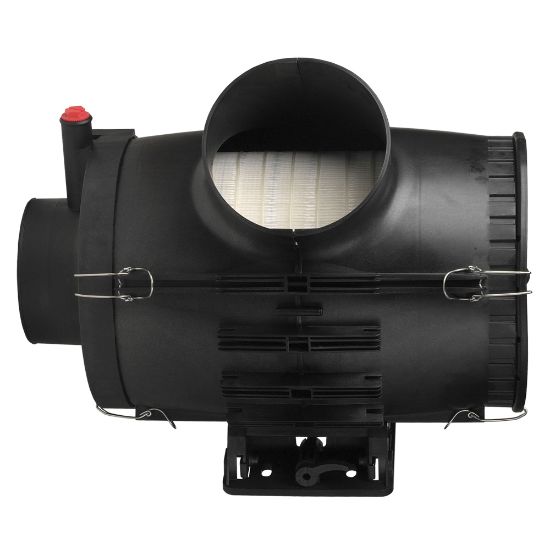

Parker 500250012 - Cartridge Engine Air Filters – Racor ECO, AF, and EA Series

Racor Cartridge Engine Air Filters ensure delivery of clean, purified air into gasoline and diesel engines. They come available with a wide range of flow rate and mounting options, making them suitable for use in any engine or application.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 500250012

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length	20.5 inch	Application	Mobile gas and diesel engines
Division	Engine Mobile Original Equipment Division	Outside Diameter	33 cm
Output Power	n/a	Accessories Included	See literature on Product Support tab
Compatible Mounting Clamp	Included	Inlet Connection Size	6 inch
Brand	Racor	Compatible Element	Primary: 500247012<br/>Safety: 500233000
Mounting Position	Horizontal or Vertical	Product Series	ECO III
For Fluid Type	Engine Air	Outlet Connection Size	15.2 cm
Materials of Construction	Engineering Plastic	Pre-Cleaner	n/a
Filter Element Type	Primary Air and Safety Filters	Flow Range	900 cfm (25.5 m3/m)
Connection Type	Straight	Maximum Flow Rate	1000 cfm (28 m3/m)
Application	Light/Medium Dust
