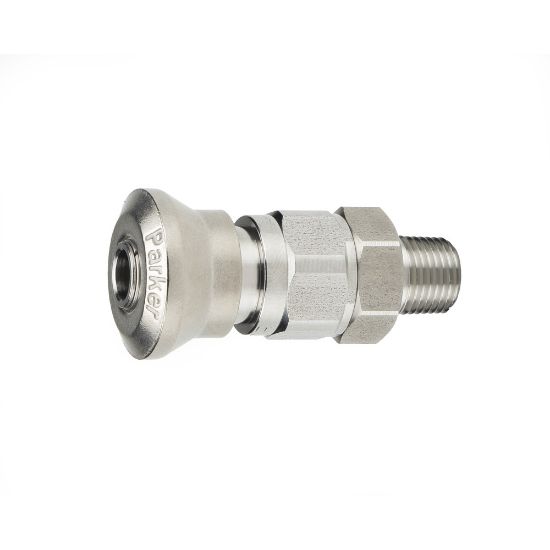

Parker 4M-Q6CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4M-Q6CY-SSP

$140.63

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Application	Instrumentation
Maximum Operating Pressure	1500 psi	Body Material	316 Stainless Steel
Seal Material	Fluorocarbon	Hose Inside Diameter	na
Minimum Operating Temperature	-15 °F	Valve Type	Poppet
Product Type	Push-to-Connect	Vacuum Pressure Rating	0.05 mm-Hg
Body Size (inch)	3/8	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Connection Type	Male NPT
Tube Size (inch)	na	Maximum Operating Pressure	1500

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
