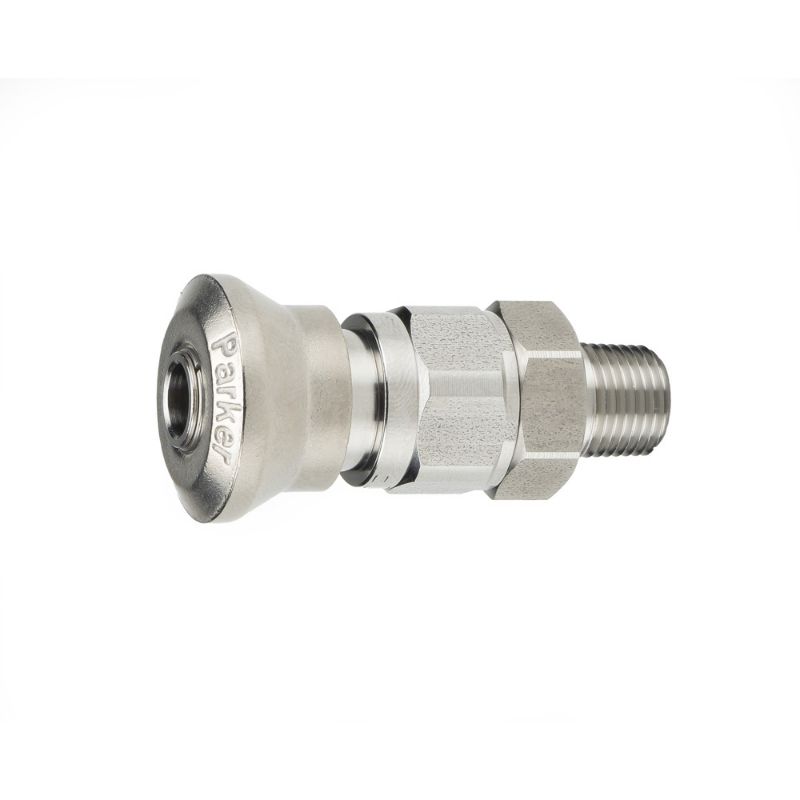

Parker 4M-Q4CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 4M-Q4CY-SSP

$113.27/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	316 Stainless steel
Minimum Operating Temperature	-15 °F	Product Type	Push-to-Connect
Hose Inside Diameter	na	Application	Instrumentation
Seal Material	Fluorocarbon	Maximum Operating Pressure	3000 psi
Valve Type	Poppet	Vacuum Pressure Rating	0.05 mm-Hg
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Maximum Operating Pressure	3000
Connection Type	Male NPT	Tube Size (inch)	na

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
