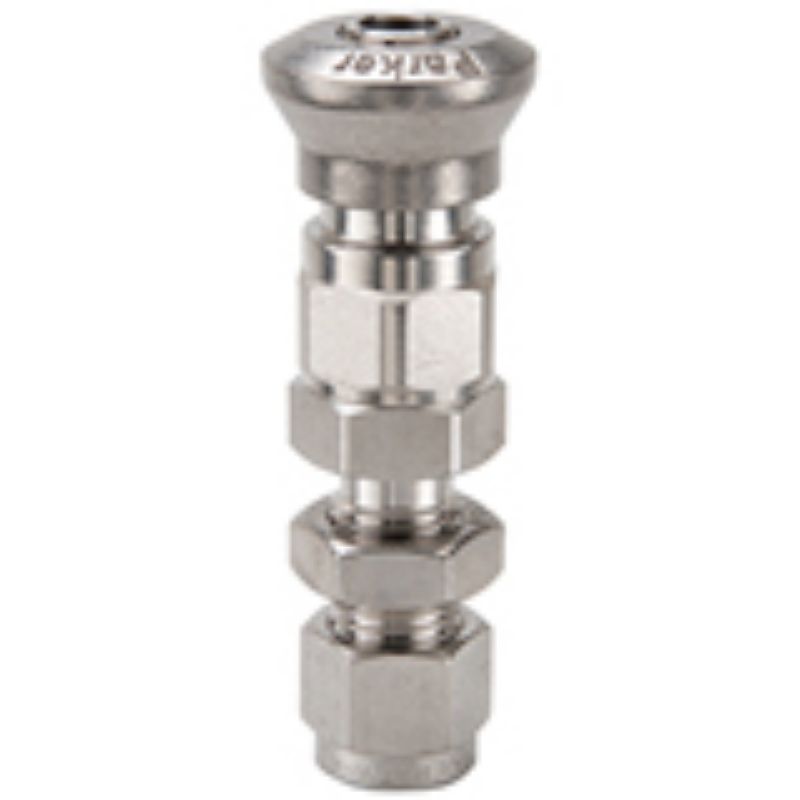

Parker 4AH-Q4CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4AH-Q4CY-SSP

$58.57/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Application	Instrumentation
Product Type	Push-to-Connect	Hose Inside Diameter	na
Seal Material	Fluorocarbon	Body Material	316 Stainless steel
Minimum Operating Temperature	-15 °F	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Maximum Operating Pressure	3000 psi
Valve Type	Poppet	Vacuum Pressure Rating	0.05 mm-Hg
Body Size (inch)	1/4	Coupling Half	Female Coupler
Connection Thread Size (inch)	na	Maximum Operating Pressure	3000
Connection Type	A-Lok bulkhead tube end	Tube Size (inch)	1/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
