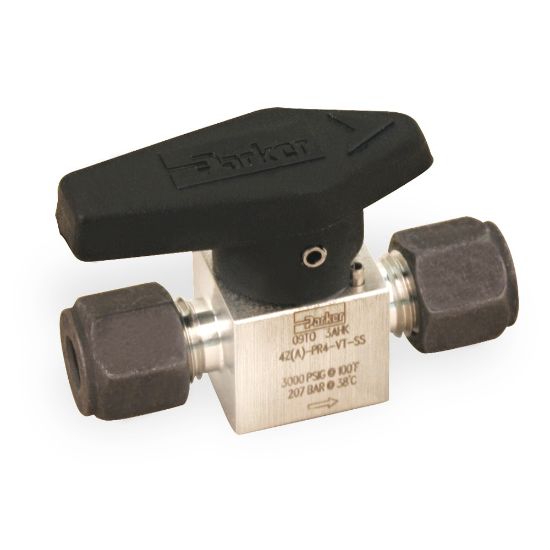

Parker 4A-PR4-VT-B - Ball Valve, Plug Valve - PR Series

Parker's PR Series Plug Valves provide positive leak tight shut-off, high flow capacity, and quick quarter-turn operation in a compact, barstock body. This plug valve provides the user the ability to throttle during manual actuation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4A-PR4-VT-B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Instrumentation Products Division	Body Material	BRASS
Connection 2 Style	Two Ferrule Compression	Connection 1 Style	Two Ferrule Compression
Maximum Operating Pressure (psi)	3,000	Seal Material	Fluorocarbon Rubber
Back-up Ring Material	PTFE	Connection 1 Size	1/4"
Maximum Operating Pressure (bar)	207	Flow Capacity (Cv)	1.18
Connection 2 Size	1/4"

Product resources

Compliance, Certifications & Safety

TUV TA Luft - HiPro En (PDF)

Literature and Reference Materials
