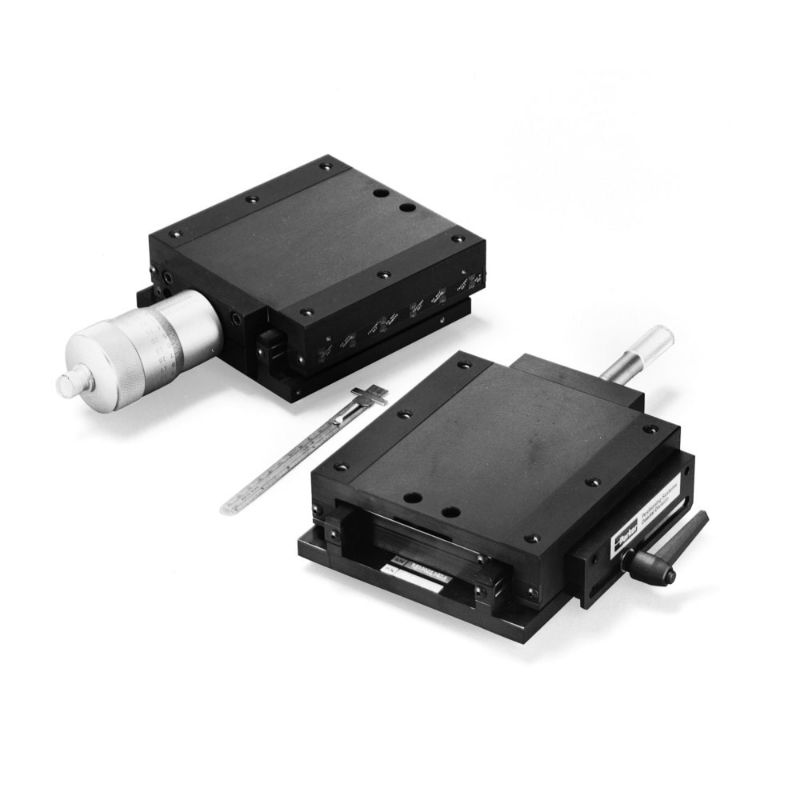

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 4945-04 - Manual Driven, Ball Bearing Guided, Large Frame Linear Positioning Stages - 4900 Series

4900-series large frame ball-bearing guided manual linear positioners have an integral drive mechanism and offer travels up to 12", payloads up to 294 lbs, plus exceptional smoothness, extremely low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4945-04

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Electronic Motion and Controls Division
Bearing Type	Ball	Mounting Option	English Model
Product Series	4900 Series	Number of Axes	1
Drive Train Type	No Readout	Product Type	Linear Stage
Load Capacity	100 lb	Maximum Travel	4 inch
Width	6 inch	Drive Mechanism	No Readout
Travel (inch)	4	Locking	No
Travel (mm)	(imperial)	Payload (lbs)	100
Type	English Model
