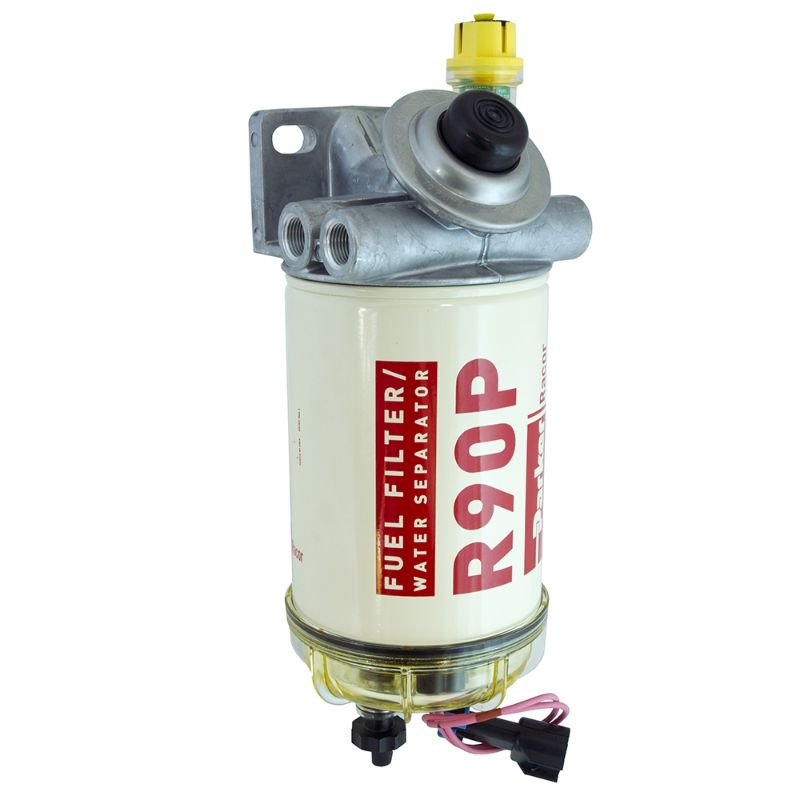

Parker 490R2430 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 490R2430

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 121 °C	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	30 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Maximum Operating Pressure	30 psi	For Fluid Type	Diesel
Maximum Fluid Temperature	88.0 °C	Depth	121.0 mm
Width	114.0 mm	Height	11.8 inch
Weight	2.9 lb	Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron
Clean Pressure Drop	6.5 kPa	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	24V / 200W (Diesel Only)
Port Size	3/8"-18 NPTF (SAE J476)	Product Series	Diesel Spin-on 400
Integral Primer Pump Included	Button Priming Pump (Diesel)	Flow Rate	90 gph (341 lph)

Product resources

Literature and Reference Materials

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)
