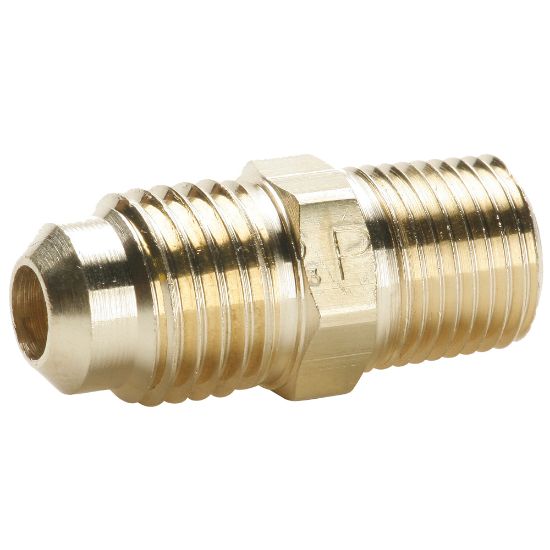

Parker 48F-6-2 - Brass 45° Flare Fittings

Name: Parker 48F-6-2 - Brass 45° Flare Fittings
SKU: 48F-6-2
Price: 4.54 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:

17 In Stock

Richmond, VA	4 (Pickup only)
North Chesterfield, VA	3
West Knoxville, TN	3
Johnson City, TN	3 (Pickup only)
Norfolk, VA	2
Summerville, SC	2

Partner Available:

1780 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 48F-6-2

$4.54/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Dimensional Weight	0.11550359712230213 lb	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	1,000 psi
Brand	Parker	Body Material	Brass
Division	Fluid System Connectors Division	Minimum Operating Temperature	-53 °C
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	250 °F	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Shape	Connector	Connection 2 Type	Male Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	5/8-18 inch
Connection 1 Tube Outside Diameter	3/8 inch	Product Style	Flare to Pipe
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	1/8 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA
