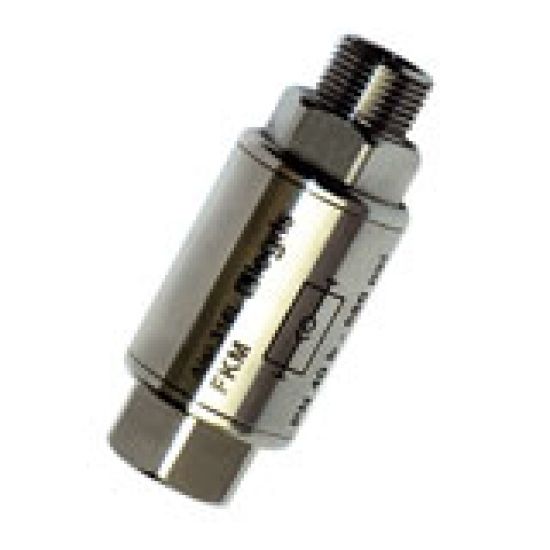

Parker 4892 10 10 - Check Valves

Parker's check valves allow compressed air to flow in one direction and prevent it from flowing in the other. Fitted upstream of the circuit to be protected, they provide total protection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4892 10 10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Minimum Operating Temperature	-20 °C
Seal Material	FKM	Gripping Ring Material	Stainless Steel
Media	Compressed Air	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Valve Configuration	One Way	Connection 1 Tube Outside Diameter	N/A
Connection 2 Tube Outside Diameter	N/A	Maximum Operating Pressure	39.9 bar
Maximum Operating Temperature	356 °F	Shape	Threaded
Body Material	316L Stainless Steel	Product Style	Pipe to Pipe
Connection Type	BSPP	Thread Material	316L Stainless Steel
Connection 1 Size	BSPP	Connection 2 Size	BSPP
Cracking Pressure	3.6 psi	Connection 1 Thread Size	1/8 mm
Connection 2 Thread Size	1/8 mm
