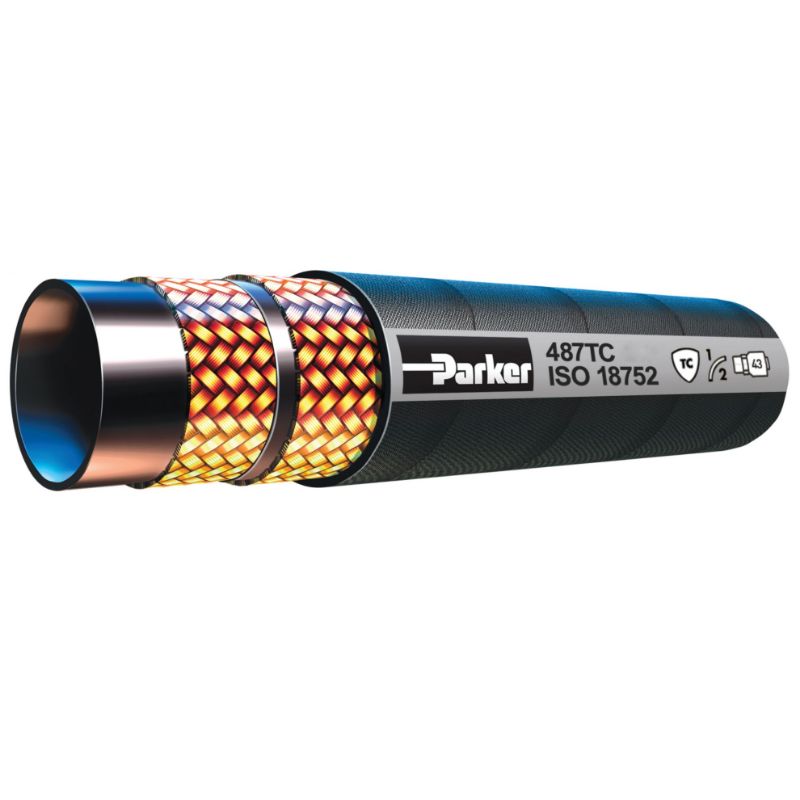

Parker 487TC-4 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

AFP Availability:	Quote Required
Partner Available:	16723 In Stock

Brand Parker

Part No. 487TC-4

$6.12/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Material	Synthetic Rubber Abrasion Resistant
Specifications Met	ISO 18752, Type AC	Minimum Bend Radius	50 mm
Nominal Hose Inside Diameter	6 mm	Weight	0.20 lb/ft
Hose Reinforcement Material	2 Braids of Steel Wire	Hose Inner Tube Material	Synthetic Rubber
Application	Petroleum Base Hydraulic Fluids	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C	Division	Hose Products Division
Compatible Fitting	43 Series	Media	Petroleum Hydraulic Fluids
Size	-4	Outside Diameter	13.1 mm
Maximum Operating Pressure	28 MPa	Inside Diameter	6.3 mm
Hose I.D. (size)	-4	Hose Cover Type	ToughCover
