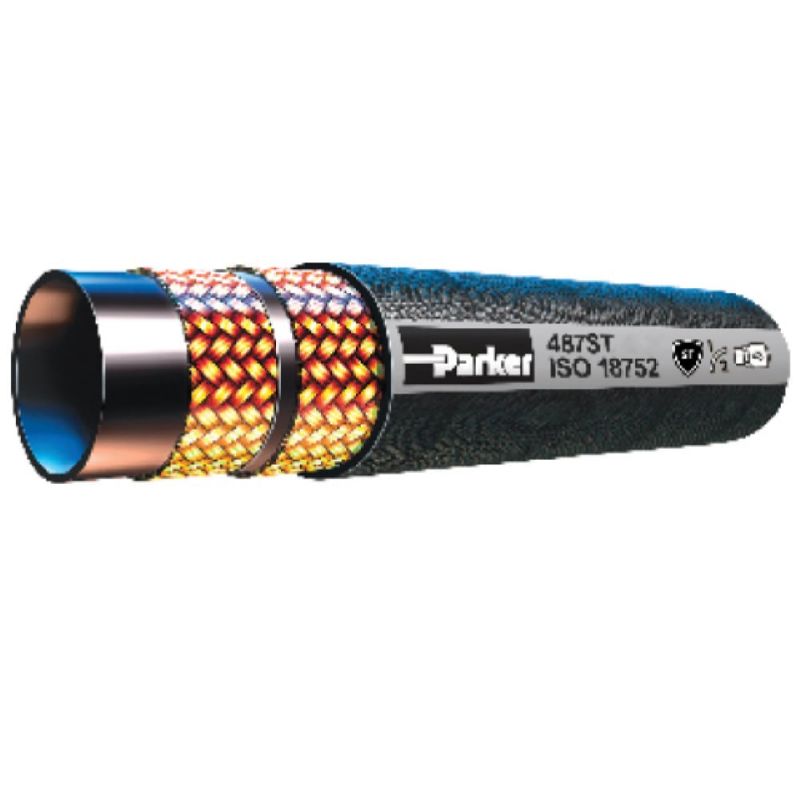

Parker 487ST-32 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

AFP Availability:	Quote Required
Partner Available:	277 In Stock

Brand Parker

Part No. 487ST-32

$113.10/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Bend Radius	12-1/2 inch
Specifications Met	ISO 18752	Hose Reinforcement Material	6 Spirals
Weight	4.35 lb/ft	Maximum Operating Pressure	4000 psi
Nominal Hose Inside Diameter	51 mm	Cover Material	Synthetic Rubber Super Abrasion Resistant
Application	Lubricating Oils	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	257 °F	Division	Hose Products Division
Compatible Fitting	77 Series	Hose Inner Tube Material	Synthetic Rubber
Media	Lubricants	Size	-32
Outside Diameter	67.3 mm	Inside Diameter	2 inch
Hose I.D. (size)	-32	Hose Cover Type	SuperTough
