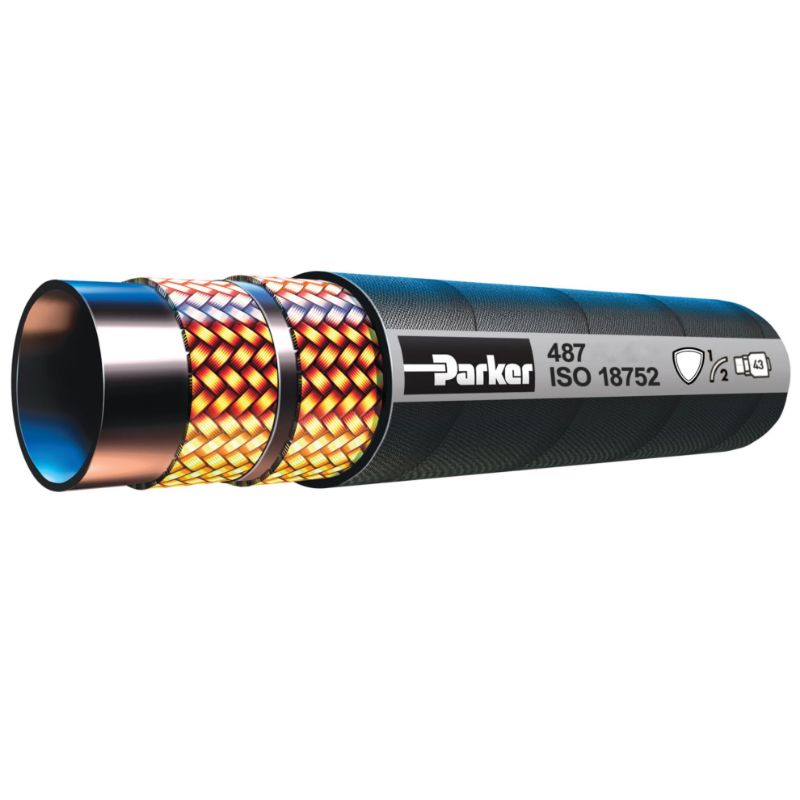

Parker 487-24 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 487 Hose

Parker’s 487 GlobalCore hose offers high performance, low-force-to-flex, and constant working pressures of 4,000 psi.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 487-24

$49.82/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	100 °C
Media	Lubricants	Hose Inner Tube Material	Synthetic Rubber
Compatible Fitting	77 Series	Size	-24
Outside Diameter	52.8 mm	Inside Diameter	38 mm
Division	Hose Products Division	Minimum Bend Radius	10 inch
Specifications Met	ISO 18752, Type BC	Hose Reinforcement Material	4 Spirals
Weight	3.08 kg/m	Maximum Operating Pressure	280 bar
Application	Petroleum Base Hydraulic Fluids	Nominal Hose Inside Diameter	38 mm
Cover Material	Synthetic Rubber	Minimum Operating Temperature	-40 °C
Hose I.D. (size)	-24	Hose Cover Type	Standard Cover
