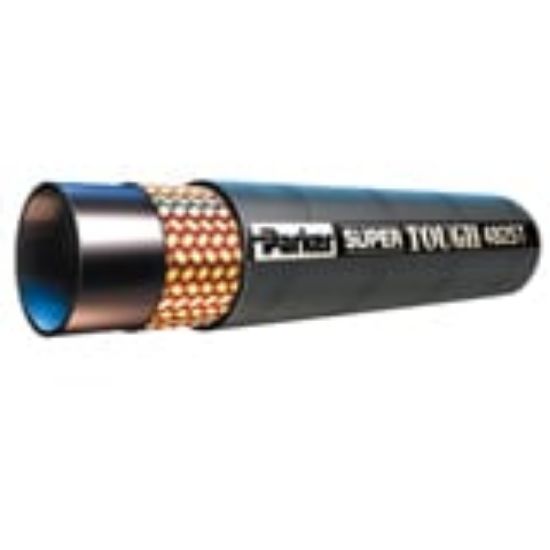

Parker 482ST-6 - Hydraulic Industry Standard Hose 1275-3250 PSI – 482 Hose

Parker's 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 482ST-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °C
Inside Diameter	3/8 inch	Maximum Operating Temperature	100 °C
Minimum Bend Radius	2-1/2 inch	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	1 Braid of Steel Wire	Application	Lubricating Oils
Maximum Operating Pressure	21 MPa	Weight	0.34 kg/m
Outside Diameter	17 mm	Nominal Hose Inside Diameter	10 mm
Media	Petroleum Hydraulic Fluids	Cover Material	MSHA Approved
Compatible Fitting	42 Series	Specifications Met	SAE 100R1, Type AT
Hose I.D. (size)	-6	Hose Cover Type	Super Tough Cover

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
