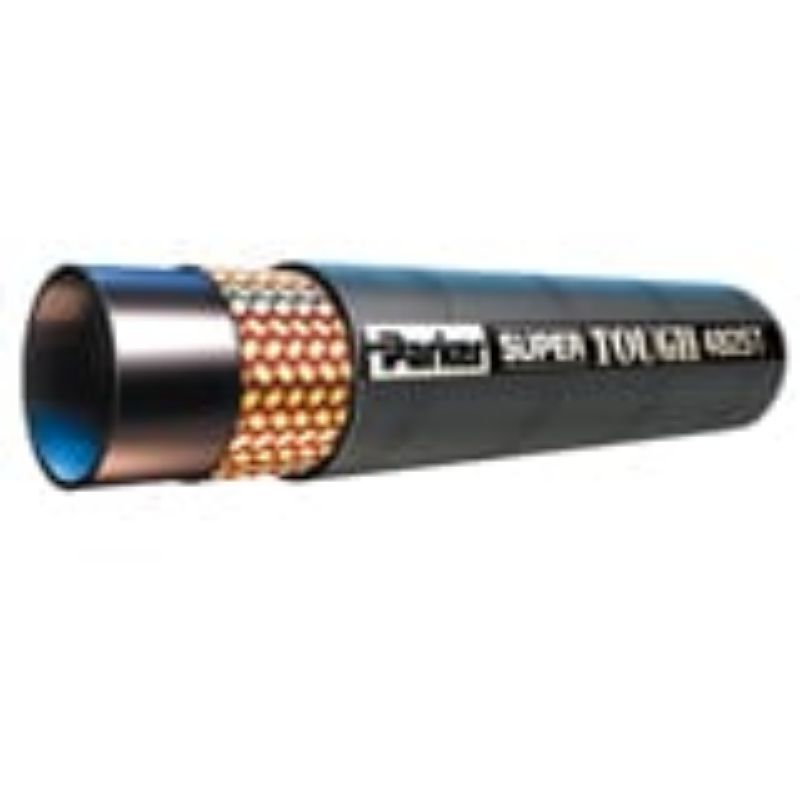

Parker 482ST-10 - Hydraulic Industry Standard Hose 1275-3250 PSI – 482 Hose

Parker's 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 482ST-10

$2.91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	100 °C
Minimum Bend Radius	100 mm	Inside Diameter	5/8 inch
Weight	0.49 kg/m	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	1 Braid of Steel Wire	Nominal Hose Inside Diameter	16 mm
Cover Material	Synthetic Rubber Abrasion Resistant	Outside Diameter	24 mm
Application	Petroleum Base Hydraulic Fluids	Maximum Operating Pressure	14 MPa
Media	Lubricants	Compatible Fitting	42 Series
Specifications Met	SAE 100R1, Type AT	Hose I.D. (size)	-10
Hose Cover Type	Super Tough Cover

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
