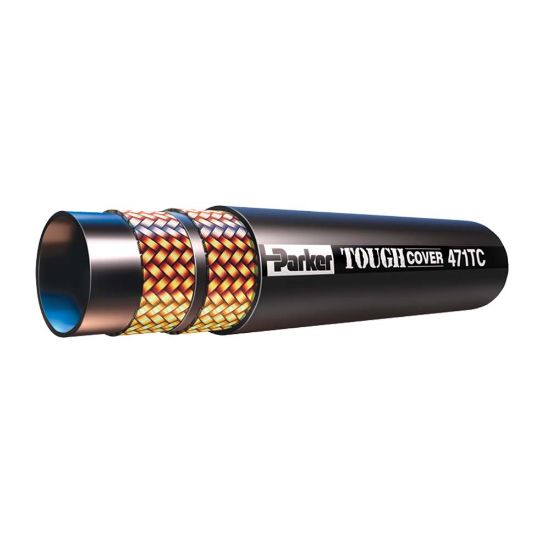

Picture of Parker 471TC-5 - Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 471TC-5 - Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose

Parker's 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 471TC-5
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionHose Products DivisionMinimum Operating Temperature-40 °C
Vacuum Pressure Rating28 Inch-HgMaximum Operating Temperature212 °F
Hose Inner Tube MaterialSynthetic RubberHose Reinforcement Material2 Braids of Steel Wire
ApplicationLubricating OilsInside Diameter5/16 inch
Nominal Hose Inside Diameter8 mmMediaPetroleum Hydraulic Fluids
Weight0.24 lb/ftMinimum Bend Radius55 mm
Outside Diameter0.590 inchCover MaterialMSHA Approved
Specifications MetUSCG HFMaximum Operating Pressure360 bar
Compatible Fitting48 SeriesHose I.D. (size)-5
Hose Cover TypeTough Cover
