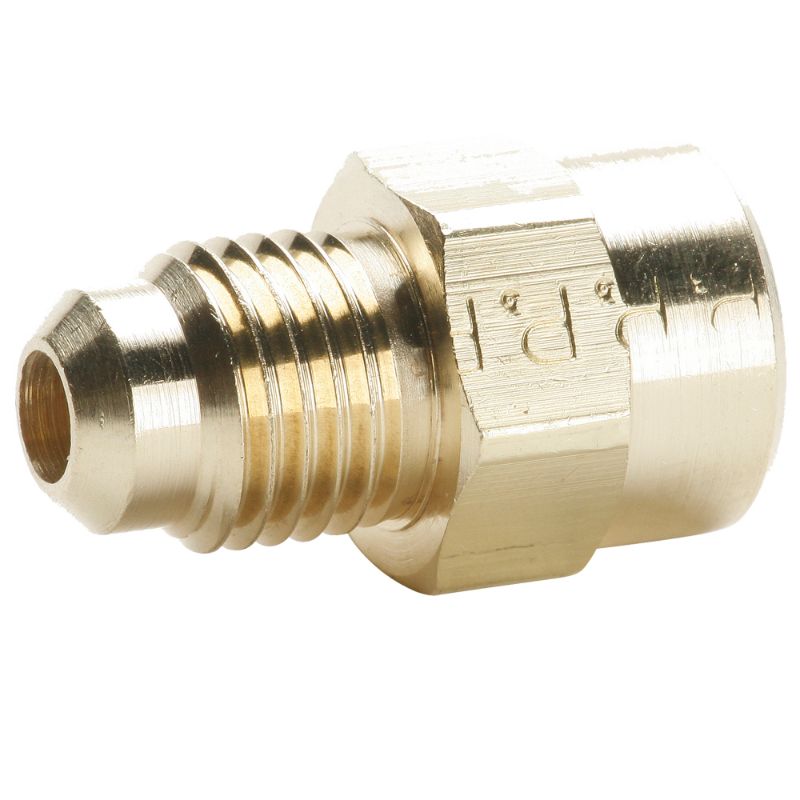

Parker 46F-5-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	155 In Stock

Brand Parker

Part No. 46F-5-4

$11.12/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Specifications Met	SAE J512, SAE J513
Body Material	Brass	Nut Material	Brass
Minimum Operating Temperature	-53 °C	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Maximum Operating Pressure	1,200 psi
Brand	Parker	Shape	Connector
Connection 2 Type	Female Pipe	Connection 1 Type	Flare
Connection 1 Thread Size	1/2-20 inch	Connection 1 Tube Outside Diameter	5/16 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	1/4 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Product Style	Flare to Female Pipe
