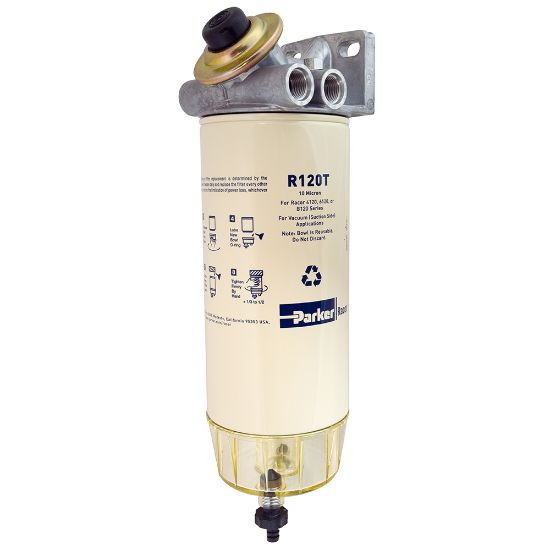

Parker 460RHH10MTC - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 460RHH10MTC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 250 °F	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	10 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Maximum Operating Pressure	207.0 kPa	For Fluid Type	Diesel
Maximum Fluid Temperature	190.0 °F	Depth	121.0 mm
Clean Pressure Drop	5.86 kPa	Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron
Width	4.4 inch	Height	374.0 mm
Weight	1.8 kg	Micron Rating	98% @ 10 Micron
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Location	EMEA region only	Product Series	Diesel Spin-on 400
Port Size	M16 1.5 SAE	Integral Primer Pump Included	Button Priming Pump (Diesel)
Flow Rate	160 gph (600 lph)	Heater Power Rating	In Head PTC Heater (12V to 24V) (Diesel Only)
