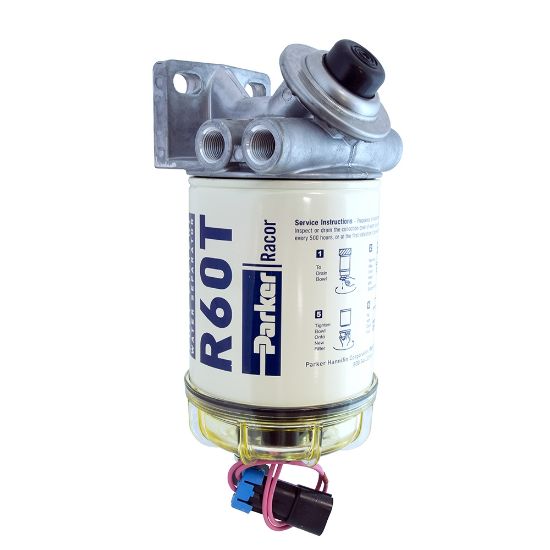

Parker 460R2410 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 460R2410

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Maximum Operating Pressure	30	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	10 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Operating Temperature	-40 to 250	Maximum Fluid Temperature	190.0
Weight	2.7	For Fluid Type	Diesel
Height	11	Clean Pressure Drop	0.39
Depth	4.8	Width	4.5
Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron	Location	North America and EMEA regions
Micron Rating	98% @ 10 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	24V / 200W (Diesel Only)
Flow Rate	60 gph (227 lph)	Port Size	3/8"-18 NPTF (SAE J476)
Product Series	Diesel Spin-on 400	Integral Primer Pump Included	Button Priming Pump (Diesel)

Product resources

Literature and Reference Materials

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)
