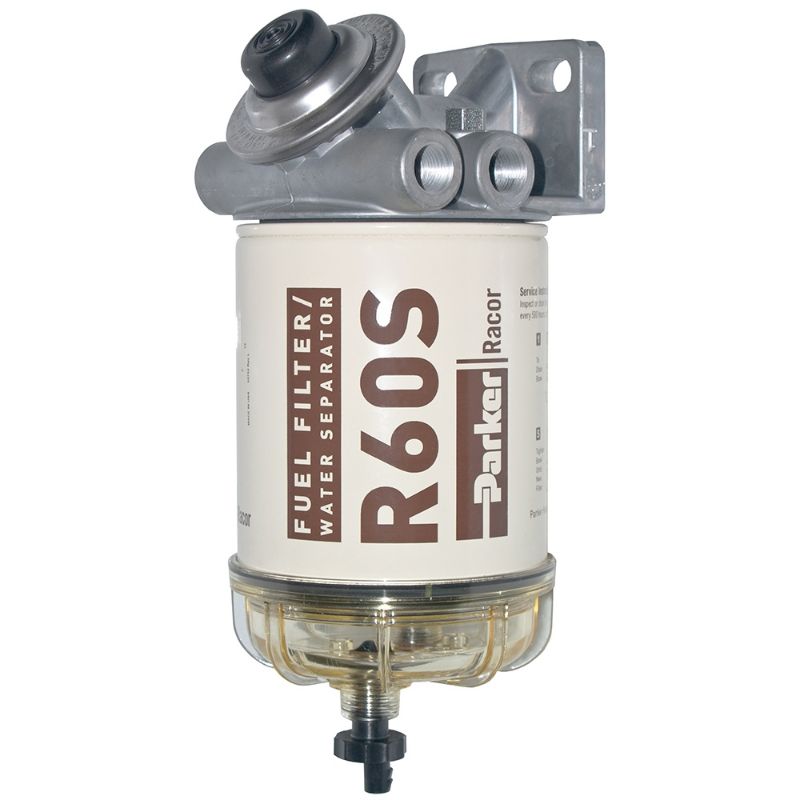

Parker 460R2 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 460R2

$413.36

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 121 °C
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	2 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	207.0 kPa
For Fluid Type	Diesel	Maximum Fluid Temperature	190.0 °F
Depth	4.8 inch	Width	4.5 inch
Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron	Weight	1.3 kg
Height	279.0 mm	Clean Pressure Drop	0.39 psi
Location	North America and EMEA regions	Micron Rating	98% @ 4 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	No Heater	Flow Rate	60 gph (227 lph)
Port Size	3/8"-18 NPTF (SAE J476)	Product Series	Diesel Spin-on 400
Integral Primer Pump Included	Button Priming Pump (Diesel)

Product resources

Literature and Reference Materials

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)
