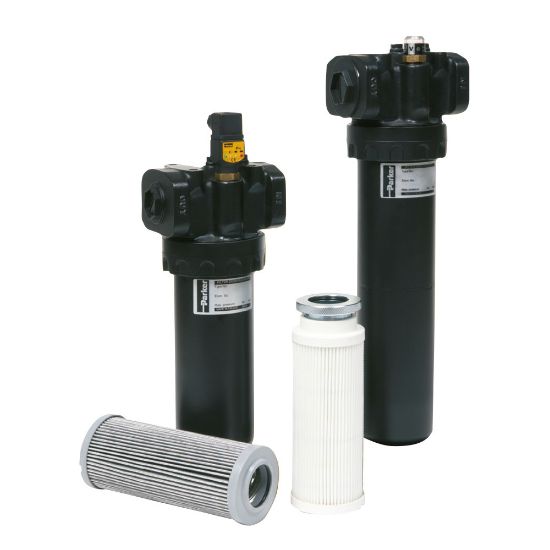

Parker 45M110QEBPKG161 - Medium Pressure In-Line Filter - 45M Series

The 45M Series of medium pressure filters offer an ideal solution to the problem of protecting system components at lower pressures. The robust filter housing allows the 45M product to be applied in harsh environments.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 45M110QEBPKG161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Mounting Type	Inline
Division	Hydraulic & Industrial Process Filtration Division EMEA	Division	Hydraulic & Industrial Process Filtration Division EMEA
Technology	Hydraulics	Product Type	Hydraulic Filter
For Fluid Type	Hydraulic Oil	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Industry	Off-road Machinery	Housing Material	Iron/Steel
Product Series	45M Series	Operating Temperature	-20 to 120 °C (Seal Material Fluoroelastomer)
Operating Pressure	40 bar	Application	Mobile Construction Equipment
Seal Material	Nitrile	Options	Standard
Indicator Type	No indicator, port plugged	Micron Rating	10 µm
Flow Rate	140 l/min	Filter Element Type	10QE Ecoglass
Indicator Pressure Setting	No indicator	Bypass Valve Pressure Rating	3.5 bar
Connection Type	G1	Height	237 mm
Flow Capacity	140 l/min	Filter Element	10QE Ecoglass
Port Connection Type	G1	Temperature Characteristics	-40 / +100°C
