*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

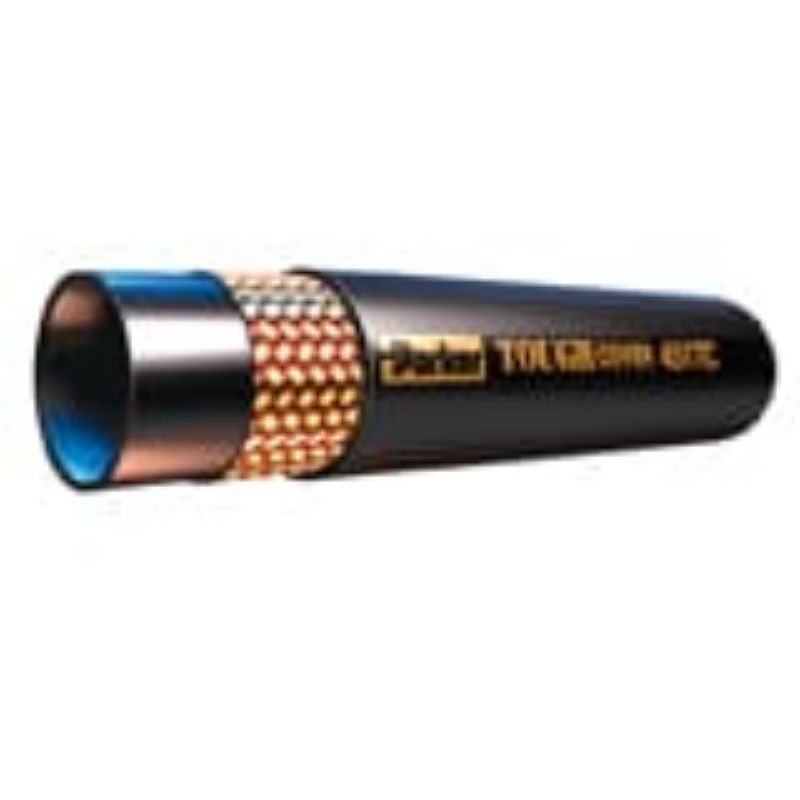

Parker 451TC-20 - OBSOLETE: Hydraulic Constant Working Pressure Hose 3000 PSI – 451 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	235 In Stock

Brand Parker

Part No. 451TC-20

$27.79

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Maximum Operating Temperature	100 °C
Media	Petroleum Hydraulic Fluids (Petroleum Base)	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	31 mm
Inside Diameter	31.5 mm	Application	Lubricating Oils
Specifications Met	ABS	Cover Material	MSHA Approved
Hose Reinforcement Material	4 Spirals	Minimum Bend Radius	8-1/4 inch
Weight	2.23 kg/m	Outside Diameter	1.850 inch
Maximum Operating Pressure	206.84 bar	Hose I.D. (size)	-20
Hose Cover Type	ToughCover

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
