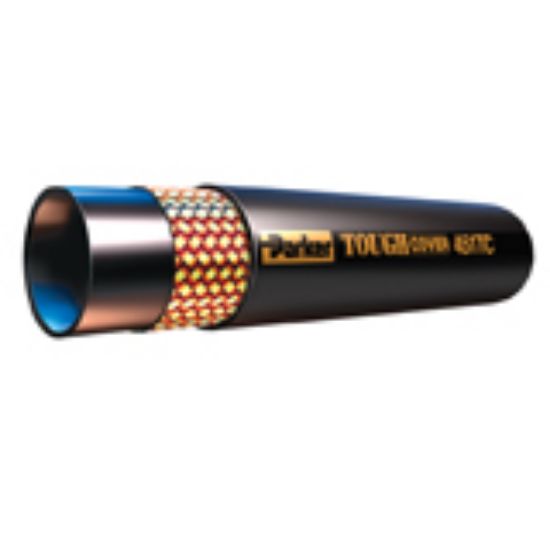

Parker 451TC-10 - OBSOLETE: Hydraulic Constant Working Pressure Hose 3000 PSI – 451 Hose

This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 451TC-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	100 °C
Minimum Bend Radius	100 mm	Media	Petroleum Hydraulic Fluids (Petroleum Base)
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	16 mm	Cover Material	Synthetic Rubber Abrasion Resistant
Outside Diameter	24 mm	Application	Lubricating Oils
Inside Diameter	16 mm	Weight	0.44 lb/ft
Specifications Met	SAE 100R17	Hose Reinforcement Material	1 or 2 Braids of Steel Wire
Hose I.D. (size)	-10	Hose Cover Type	ToughCover

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
