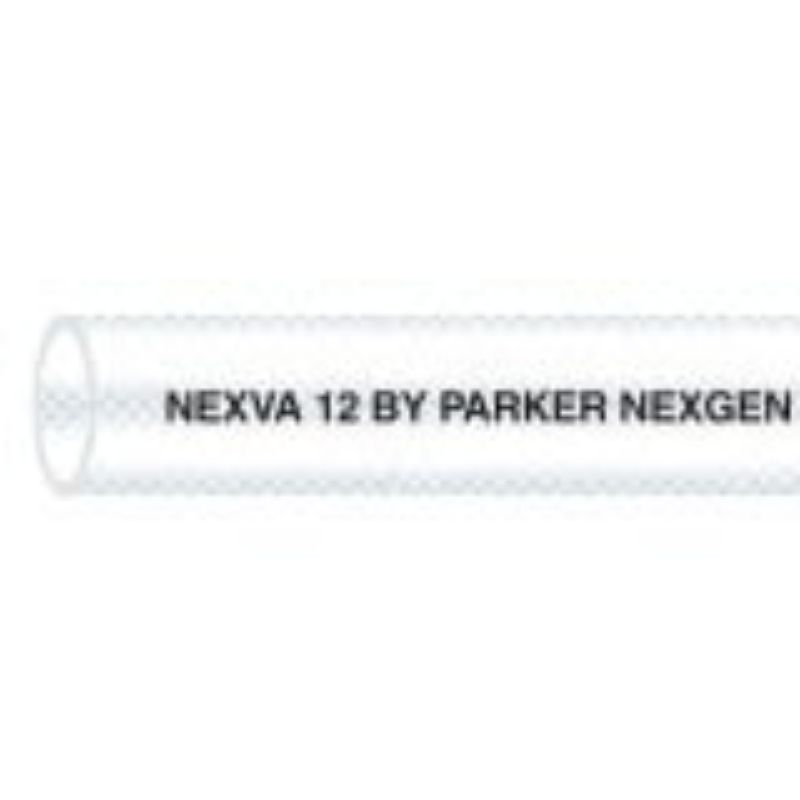

Parker 450-04000500 - NEXVA™ EVA Clear General Service Hose, Series 450

Nexva EVA Clear General Service Hose is designed for transfer of abrasives, anhydrous ammonia, chemicals, herbicides, insecticides, water and various media in applications to 125°F and 300 psi, Series 450

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 450-04000500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Package Type	Coil
Vacuum Pressure Rating	Light	Length per Package	500
Application	PVC Hose	Cover Color	Transparent
Minimum Bend Radius	n/a	Hose Reinforcement Material	2 Plies of Textile
Inside Diameter	1/4	Compatible Fitting	n/a
Minimum Operating Temperature	-50	Media	Mild Chemicals (Anhydrous Ammonia)
Weight	0.03	Maximum Operating Pressure	300 psi at 68°F
Maximum Operating Temperature	125	Specifications Met	RoHS 2011/65/EC
Cover Material	Ethyl Vinyl Acetate (EVA)	Outside Diameter	0.390
Hose Inner Tube Material	Semi-translucent Natural	Hose I.D. (inch)	1/4
Maximum Working Pressure (psi)	3000

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
