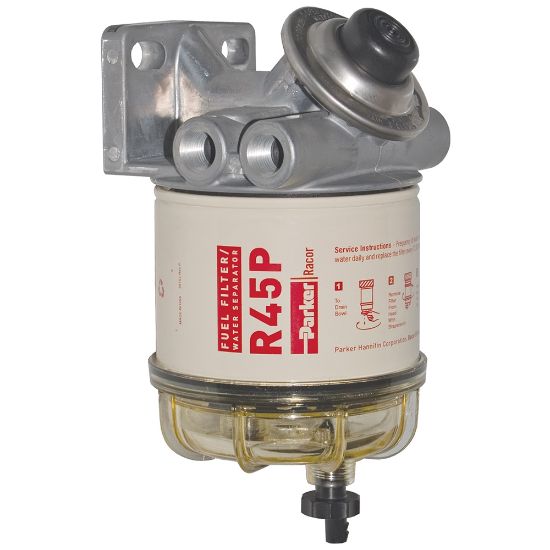

Picture of Parker 445R30 - Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 445R30 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 445R30
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionEngine Mobile Original Equipment DivisionBrandRacor
Operating Temperature-40 to 250 °FProduct TypeDiesel Spin-on FF/WS
Head MaterialAluminium AlloyNumber of Ports2 Inlet / 2 Outlet
Filter Element Type30 Micron Aquabloc Spin-onAccessories IncludedSee Product Support Tab
Maximum Operating Pressure207.0 kPaFor Fluid TypeDiesel
Maximum Fluid Temperature88.0 °CCompatible ElementR45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron
Depth4.8 inchWidth114.0 mm
Weight1.1 kgHeight236.0 mm
Clean Pressure Drop1.2 kPaLocationNorth America and EMEA regions
Micron Rating98% @ 30 MicronMountingBracket Included
Bowl TypeStandard, Clear Engineering PlasticPart TypeFilter Assembly
Bowl MaterialClear Engineering PlasticHeater Power RatingNo Heater
Flow Rate45 gph (170 lph)Port Size3/8"-18 NPTF (SAE J476)
Product SeriesDiesel Spin-on 400Integral Primer Pump IncludedButton Priming Pump (Diesel)
