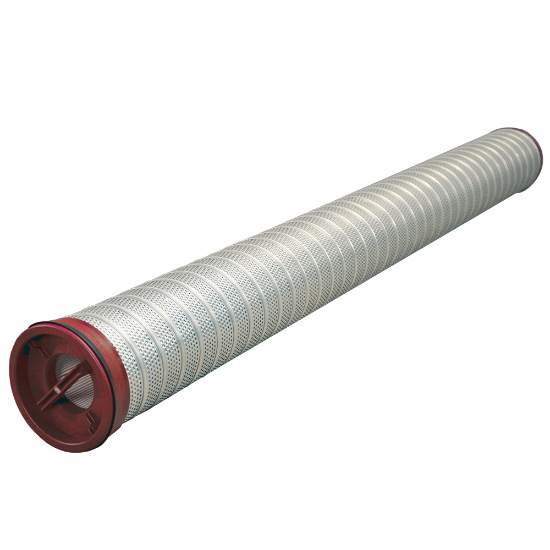

Parker 44138 - XTREAMPURE® XP Liquid Filter Cartridge

XtreamPure® Series XP high flow rate filter cartridge for contaminant removal used in a variety of liquid filtration applications. Several styles to handle any temperature, compatibility & cleanliness.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 44138

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Direction	Inside-to-Outside	Changeout Pressure Differential	35 psid
Maximum Pressure Differential	50	Division	Industrial Process Filtration Division
Product Type	Filter Cartridge	Technology	Filtration
Industry	Oil and Gas	Nominal Inside Diameter	3 inch
Brand	PECO	Quantity per Box	1
Division	Industrial Process Filtration Division	Nominal Outside Diameter	6.3 inch
Maximum Operating Temperature	240 F	Filter Construction	Pleated
End Cap Material	Nylon	Body Material	Tin-Plated Steel
Nominal Outside Diameter	6.3"	Product Series	XP-CC1
Seal Material	Viton	Changeout Pressure Differential	35 PSID
Cartridge Length	60.5"	Model Number	ELMT XP-CC1-6200V
Maximum Pressure Differential	50 psid	End Cap Configuration	SOE - Open top w/ handle outer chevron-style seal, closed bottom
Filter Material	Composite Cellulose/Synthetic Blend	Core Material	N/A
Nominal Inside Diameter	3"	Micron Rating	20
Flow Direction	Inside-to-Outside	pH Range	5-9
