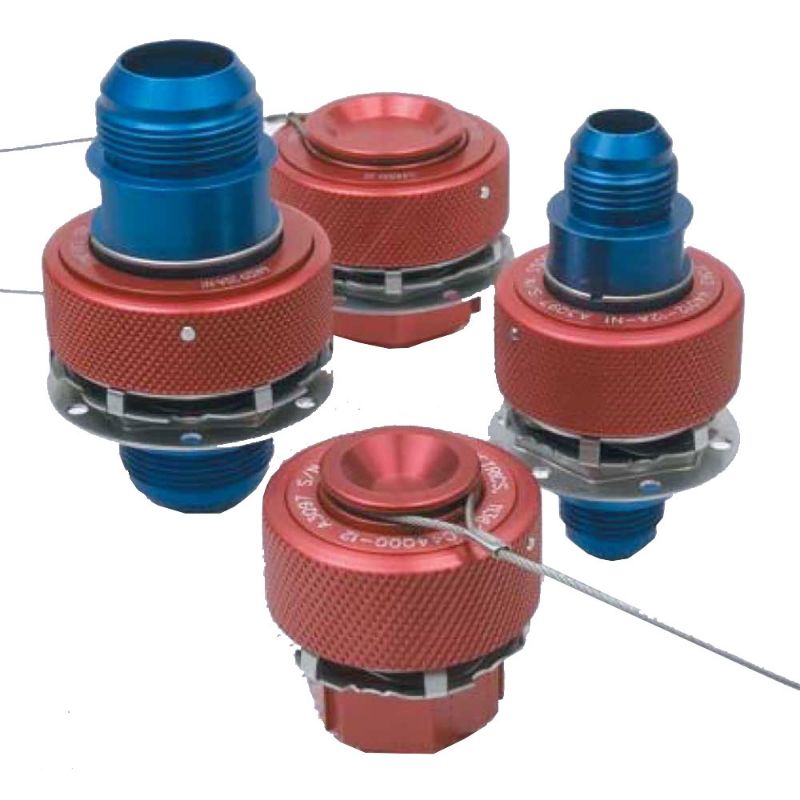

Parker 44004-04A-E17 - Ground Service Equipment (GSE) Quick-Disconnect Couplings

Thread-together style self-sealing quick disconnect (QD) couplings are designed for connecting ground support carts to the aircraft. The ground service equipment QD provides reliable performance, simple one hand operation, and positive latching.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 44004-04A-E17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	1.2	Body Material	Aluminum Alloy Anodized
Minimum Operating Pressure	-5	For Fluid Type	Phosphate Ester, Skydrol Type IV
Maximum Fluid Temperature	250	Division	Stratoflex Products Division
Proof Pressure	4500	Burst Pressure	7500
Minimum Fluid Temperature	-65	Maximum Operating Pressure	3000
Fitting Type	SAE AS4395E04	Line Size - Inlet	1/4 inch
Dust Cap Option	P44000-04-E17
