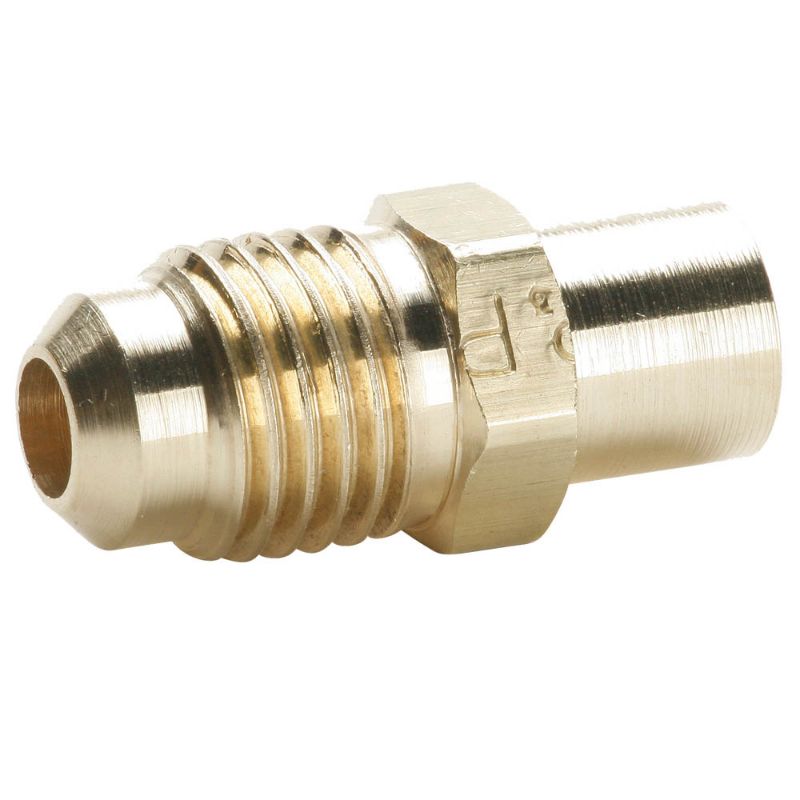

Parker 43F-4-5 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 43F-4-5

$4.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	Fluorocarbon
Maximum Operating Temperature	121 °C	Technology	Fluid & Gas Handling
Nut Material	Brass	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Division	Fluid System Connectors Division	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	1,400 psi
Brand	Parker	Body Material	Brass
Division	Fluid System Connectors Division	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Minimum Operating Temperature	-65 °F	Shape	Connector
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 2 Tube Outside Diameter	5/16 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Product Style	Flare to Solder	Connection 2 Type	Solder O D
