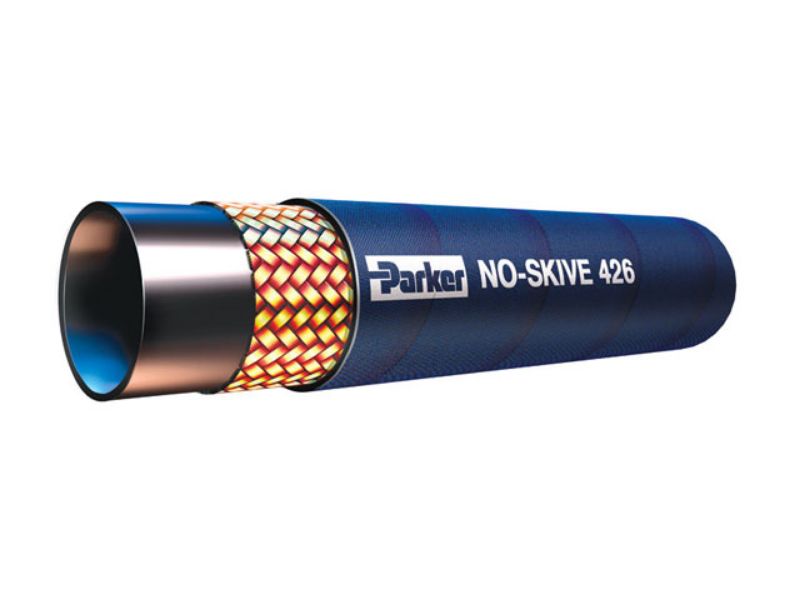

Picture of Parker 426-12 - Hydraulic Industry Standard High-Temperature Hose 375-2750 PSI – 426 Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 426-12 - Hydraulic Industry Standard High-Temperature Hose 375-2750 PSI – 426 Hose

Parker's 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications.
Availability:
46 In Stock
Norfolk, VA46
Partner Available:230 In Stock
Brand Parker
Part No. 426-12
$14.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTDivisionHose Products Division
Maximum Operating Temperature150 °CInside Diameter19 mm
Compatible Fitting43 SeriesHose Reinforcement Material1 Braid of Steel Wire
Nominal Hose Inside Diameter19 mmApplicationLubricating Oils
MediaPetroleum Hydraulic FluidsWeight0.65 kg/m
Hose Inner Tube MaterialPKR® RubberMaximum Operating Pressure1250 psi
Specifications MetABSMinimum Bend Radius240 mm
Cover MaterialMSHA ApprovedOutside Diameter28 mm
Minimum Operating Temperature-46 °CHose I.D. (size)-12
UOMFTMaterialRubber
Working Pressure1250 PSI (90 bar)Pkg Qty230
Inner Diameter0.75 InchPkg Qty/UOM230 FT
Working Pressure Range1000 to 1999 PSI (69 to 138 bar)Inch/MetricInch
Hose CategoryHydraulic Industry StandardInner Diameter Inch/mmInch
Inner Diameter0.75 InchMaterialRubber
Parker GroupFluid ConnectorSeries426
ApplicationHydraulicDistinct PropertiesHigh Temperature
Parker DivisionHose ProductsHose Pressure RangeMedium
