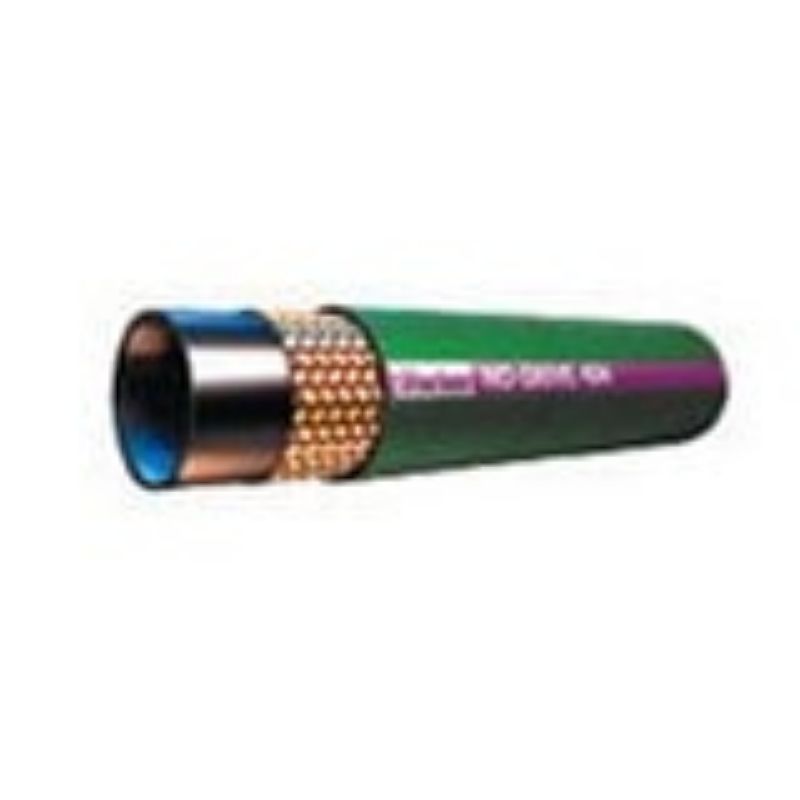

Parker 424-32 - Phosphate-Ester Hose 375-1000 PSI - 424 Hose

Parker's 424 hose is a phosphate-ester compatible hose that has a pressure range of 375-1000 PSI and is specifically designed to resist aggressive airline hydraulic fluids.

AFP Availability:	Quote Required
Partner Available:	79 In Stock

Brand Parker

Part No. 424-32

$81.46/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	51 mm
Division	Hose Products Division	Cover Color	Green
Hose Reinforcement Material	1 Braid of Steel Wire	Specifications Met	n/a
Maximum Operating Pressure	2.6 MPa	Outside Diameter	2.500 inch
Weight	2.23 kg/m	Minimum Operating Temperature	40 °C
Application	Phosphate Ester	Cover Material	Ethylene Propylene Diene Monomer (EPDM)
Nominal Hose Inside Diameter	51 mm	Minimum Bend Radius	630 mm
Maximum Operating Temperature	80 °C	Media	Petroleum Hydraulic Fluids
Compatible Fitting	43 Series	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Hose I.D. (size)	-32
