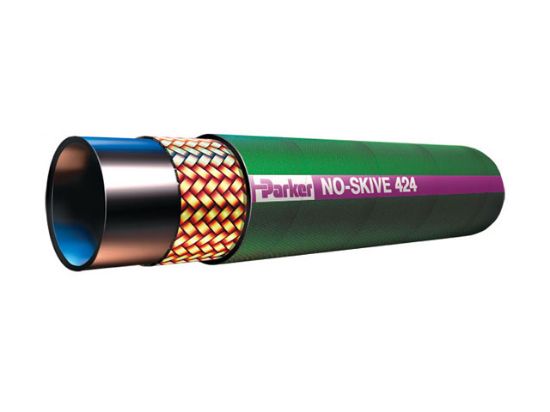

Parker 424-20 - Phosphate-Ester Hose 375-1000 PSI - 424 Hose

Parker's 424 hose is a phosphate-ester compatible hose that has a pressure range of 375-1000 PSI and is specifically designed to resist aggressive airline hydraulic fluids.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 424-20

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Maximum Operating Temperature	176 °F	Specifications Met	N/A
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Cover Color	Green
Compatible Fitting	43 Series	Hose Reinforcement Material	1 Braid of Steel Wire
Nominal Hose Inside Diameter	31 mm	Inside Diameter	31.5 mm
Outside Diameter	44 mm	Maximum Operating Pressure	4.3 MPa
Media	Petroleum Hydraulic Fluids	Application	Phosphate Ester
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Weight	0.8 lb/ft
Minimum Bend Radius	16-1/2 inch	Hose I.D. (size)	-20
Inner Diameter	1.25 Inch	UOM	FT
Working Pressure	625 PSI (40 bar)	Material	Rubber
Pkg Qty/UOM	50 FT	Pkg Qty	50
Inch/Metric	Inch	Hose Category	Hydraulic – Phosphate-Ester
Inner Diameter Inch/mm	Inch	Material	Rubber
Application	Hydraulic Phosphate Ester	Series	424
Inner Diameter	1.25 Inch	Parker Division	Hose Products
Working Pressure Range	500 to 999 PSI (34 to 69 bar	Hose Pressure Range	Medium
Parker Group	Fluid Connector
