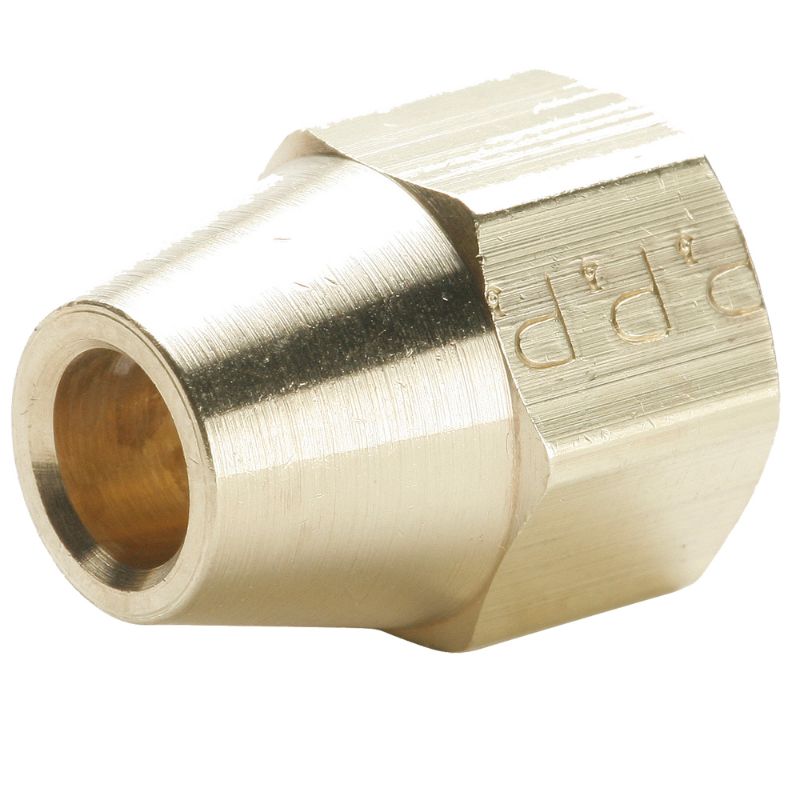

Parker 41FS-10 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Availability:	Quote Required
Partner Available:	314 In Stock

Brand Parker

Part No. 41FS-10

$10.07

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Division	Fluid System Connectors Division	Body Material	Brass
Technology	Fluid & Gas Handling	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	121 °C
Minimum Operating Temperature	-53 °C	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	193 bar
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Dimensional Weight	0.11362410071942446 lb
Connection 1 Type	Flare	Connection 1 Thread Size	7/8-14 inch
Connection 1 Tube Outside Diameter	5/8 inch	Connection 3 Tube Outside Diameter	NA
Product Style	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 2 Thread Size	NA
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Shape	Short Extruded Nut
