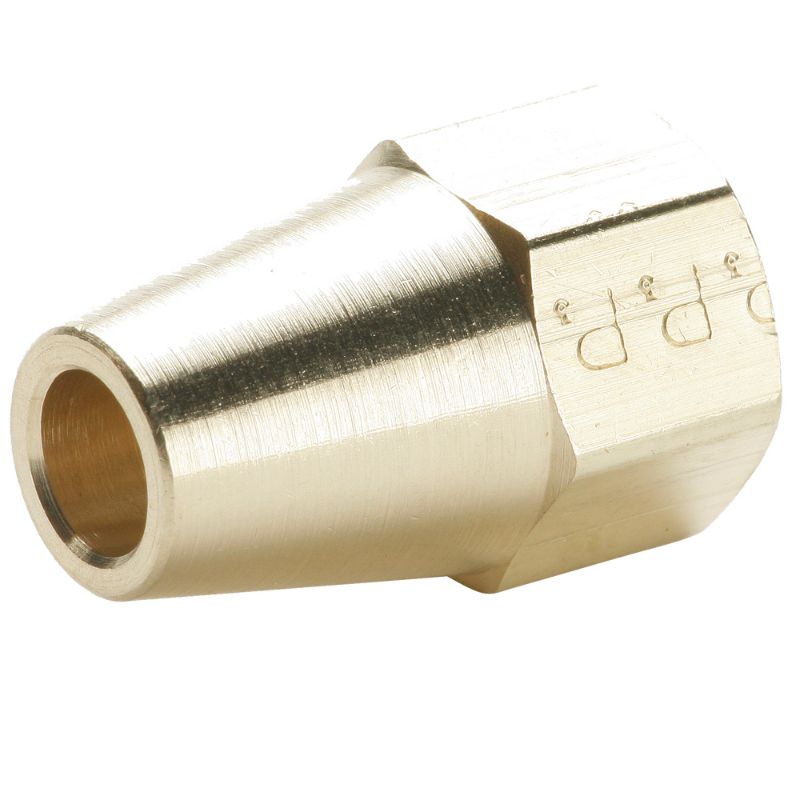

Parker 41FL-3 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:	Quote Required
Partner Available:	32 In Stock

Brand Parker

Part No. 41FL-3

$4.65/each

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Pressure	1,900 psi
Brand	Parker	Body Material	Brass
Division	Fluid System Connectors Division	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Minimum Operating Temperature	-65 °F	Maximum Operating Temperature	121 °C
Technology	Fluid & Gas Handling	O-Ring Material	Fluorocarbon
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Nut Material	Brass
Division	Fluid System Connectors Division	Connection 1 Type	Flare
Connection 1 Thread Size	3/8-24 inch	Connection 1 Tube Outside Diameter	3/16 inch
Connection 3 Tube Outside Diameter	NA	Product Style	Flare
Connection 2 Type	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Shape	Long Extruded Nut
