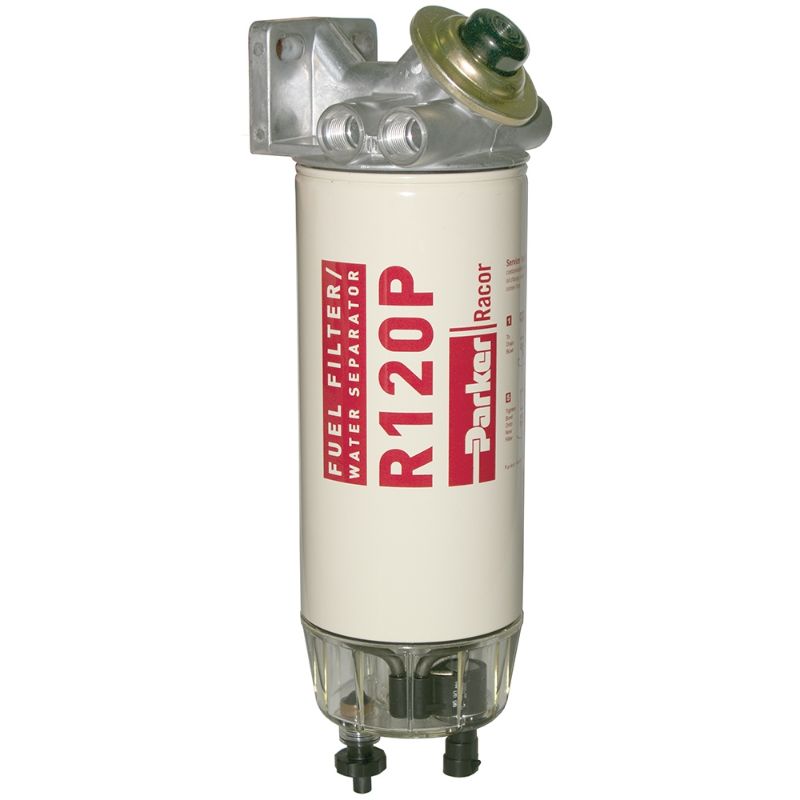

Picture of Parker 4120R30 - Fuel Filter Water Separator – Racor Spin-on Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 4120R30 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 4120R30
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionEngine Mobile Original Equipment Division
BrandRacorProduct TypeDiesel Spin-on FF/WS
Head MaterialAluminium AlloyNumber of Ports2 Inlet / 2 Outlet
Filter Element Type30 Micron Aquabloc Spin-onAccessories IncludedSee Product Support Tab
Operating Temperature-40 to 250Maximum Fluid Temperature190.0
For Fluid TypeDieselMaximum Operating Pressure15
Weight3.9 lb / 1.8 KgCompatible ElementR120S = "2" Micron<br/>R120T = 10 Micron<br/>R120P = 30 Micron
Depth4.8Width4.5
Height15Clean Pressure Drop0.85
LocationNorth America and EMEA regionsMicron Rating98% @ 30 Micron
MountingBracket IncludedPart TypeFilter Assembly
Bowl MaterialClear Engineering PlasticHeater Power RatingNo Heater
Bowl TypeDeep Bowl, Clear Engineering PlasticProduct SeriesDiesel Spin-on 400
Flow Rate120 gph (454 lph)Port Size3/4"-16 SAE (SAE J1926)
Integral Primer Pump IncludedButton Priming Pump (Diesel)
