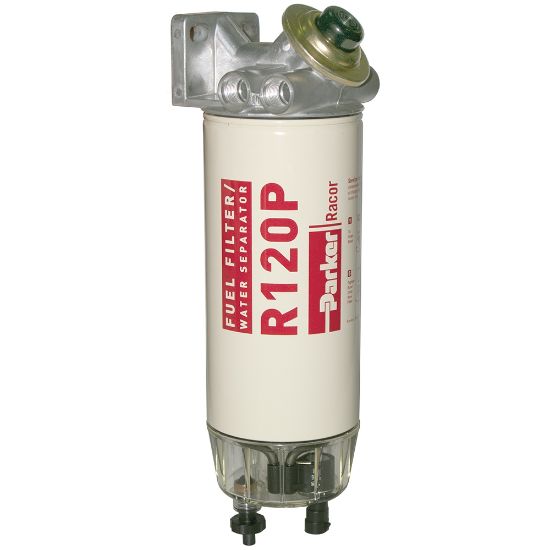

Parker 4120R1230 - Fuel Filter Water Separator – Racor Spin-on Series

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4120R1230

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Original Equipment Division	Brand	Racor
Operating Temperature	-40 to 250 °F	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	30 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
For Fluid Type	Diesel	Maximum Fluid Temperature	88.0 °C
Weight	3.9 lb / 1.8 Kg	Compatible Element	R120S = "2" Micron<br/>R120T = 10 Micron<br/>R120P = 30 Micron
Maximum Operating Pressure	15 psi	Depth	4.8 inch
Width	114.0 mm	Height	15 inch
Clean Pressure Drop	0.85 psi	Location	North America and EMEA regions
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	12V / 300W (Diesel Only)	Bowl Type	Deep Bowl, Clear Engineering Plastic
Product Series	Diesel Spin-on 400	Flow Rate	120 gph (454 lph)
Port Size	3/4"-16 SAE (SAE J1926)	Integral Primer Pump Included	Button Priming Pump (Diesel)

Product resources

Literature and Reference Materials

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)
