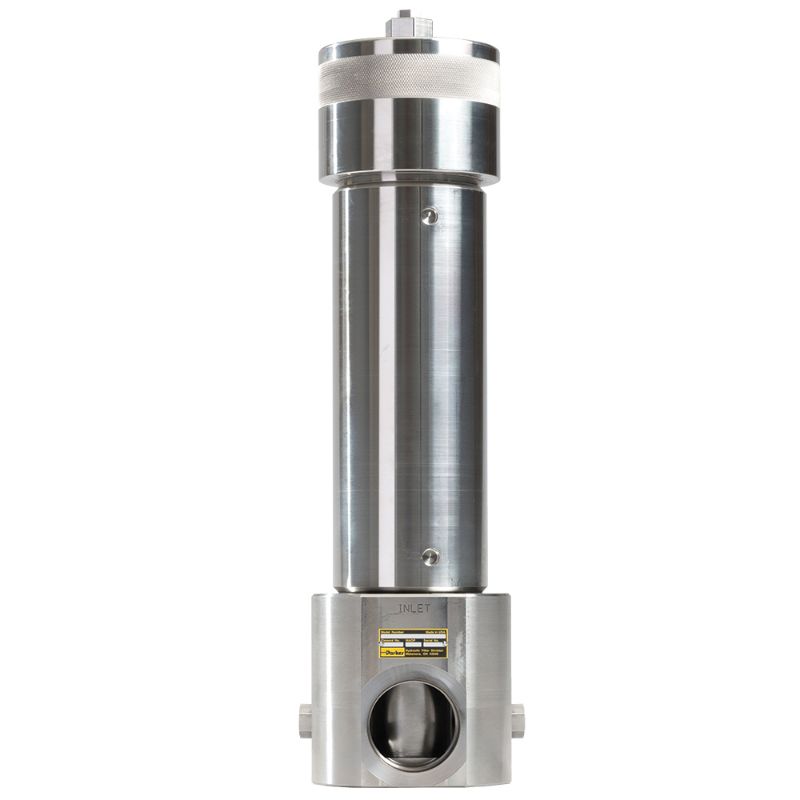

Parker 40S202QHEPKS321 - High Pressure Stainless Steel Filter 40S Series

The 40S Series is a high pressure filter constructed in all 316 stainless steel which makes it ideally suited for water and caustic applications or where harsh environmental conditions exist. Allowable operating pressure of 3000 PSI/138 Bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 40S202QHEPKS321

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Maximum Operating Temperature	225
Seal Material	Ethylene Propylene	Pressure Rating	3000
Indicator Pressure Setting	No Indicator	Weight	65
Port Type	SAE-32	Housing Material	316 Stainless Steel
Compatible Element	945774Q	Options	Bypass (steel spring)
Flow Rate	283	Indicator Type	Port Plugged
Filter Element Type	02QH Microglass	Bypass Valve Pressure Rating	50
Seal Material	Ethylene Propylene	Indicator Type	Port plugged
Options	Bypass (steel spring)	Port Connection Type	SAE-32
Filter Element	02QH Microglass	Flow Rate (gpm)	75
Bypass Valve (psi)	50

Product resources

Literature and Reference Materials
