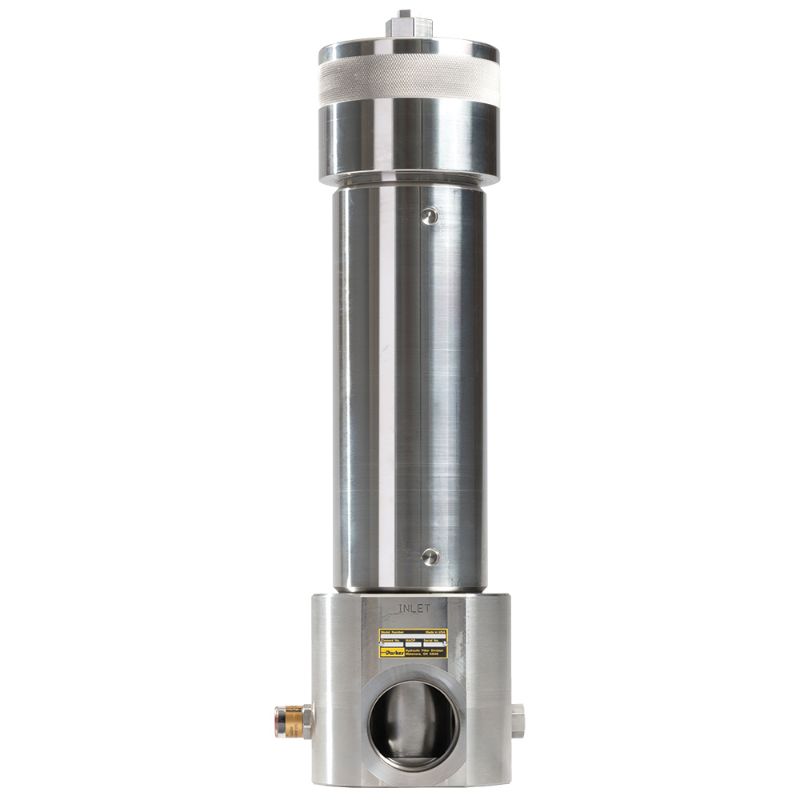

Parker 40S202QHEM3KS242 - High Pressure Stainless Steel Filter 40S Series

The 40S Series is a high pressure filter constructed in all 316 stainless steel which makes it ideally suited for water and caustic applications or where harsh environmental conditions exist. Allowable operating pressure of 3000 PSI/138 Bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 40S202QHEM3KS242

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Indicator Type	Visual
Bypass Valve Pressure Rating	No Bypass	Maximum Operating Temperature	225
Options	No bypass	Seal Material	Ethylene Propylene
Pressure Rating	3000	Weight	65
Port Type	SAE-24	Housing Material	316 Stainless Steel
Compatible Element	945780Q	Flow Rate	283
Filter Element Type	02QH Microglass	Indicator Pressure Setting	40
Indicator Type	Visual	Bypass Valve (psi)	No Bypass
Seal Material	Ethylene Propylene	Options	No bypass
Port Connection Type	SAE-24	Filter Element	02QH Microglass
Flow Rate (gpm)	75
