Parker 402525 - ParFit™ Interchange and Parker Replacement Element

Parker Original Hydraulic and Lube Oil Element and ParFit™ Competitive Interchange Replacement

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 402525

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media Type	Microglass	Collapse Pressure (psi)	100 psi
UOM	EA	Collapse Pressure (bar)	7 bar
Efficiency βx(C) ≥ 1000	5 µ	Seals	NBR: Nitrile
Efficiency βx(C) ≥ 200	4 µ	Pkg Qty	1

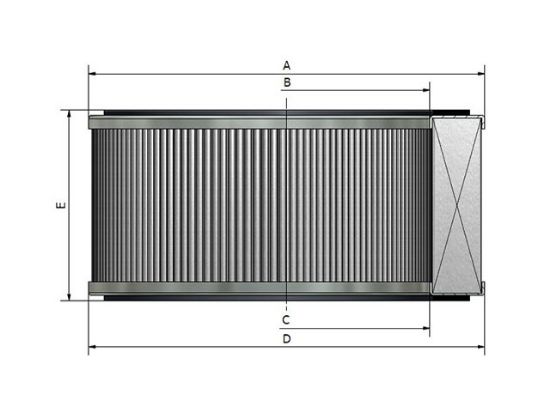

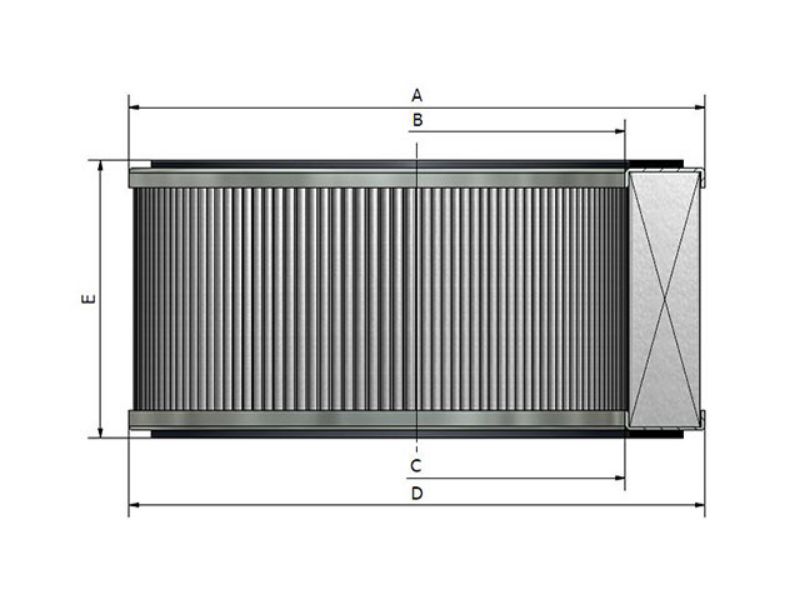

C Dimension	3.201 in (81.3 mm)	Bottom Endcap Material	Mild steel
Seals	NBR: Nitrile	Collapse Pressure (bar)	7 bar
Parker Division	Hydraulic Filter	Series	ParFit
Media Type	Microglass	Efficiency βx(C) ≥ 1000	5 µ
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	Glue Endcaps Adhesive	Epoxy
Efficiency βx(C) ≥ 200	4 µ	Media	2 Micron Absolute
E Dimension	71.949 in (1827.5 mm)	Top Endcap Material	Mild steel
B Dimension	3.201 in (81.3 mm)	Parker Group	Filtration
Glue Side Seam Adhesive	Epoxy	D Dimension	6.13 in (155.7 mm)
A Dimension	6.13 in (155.7 mm)	Collapse Pressure (psi)	100 psi
