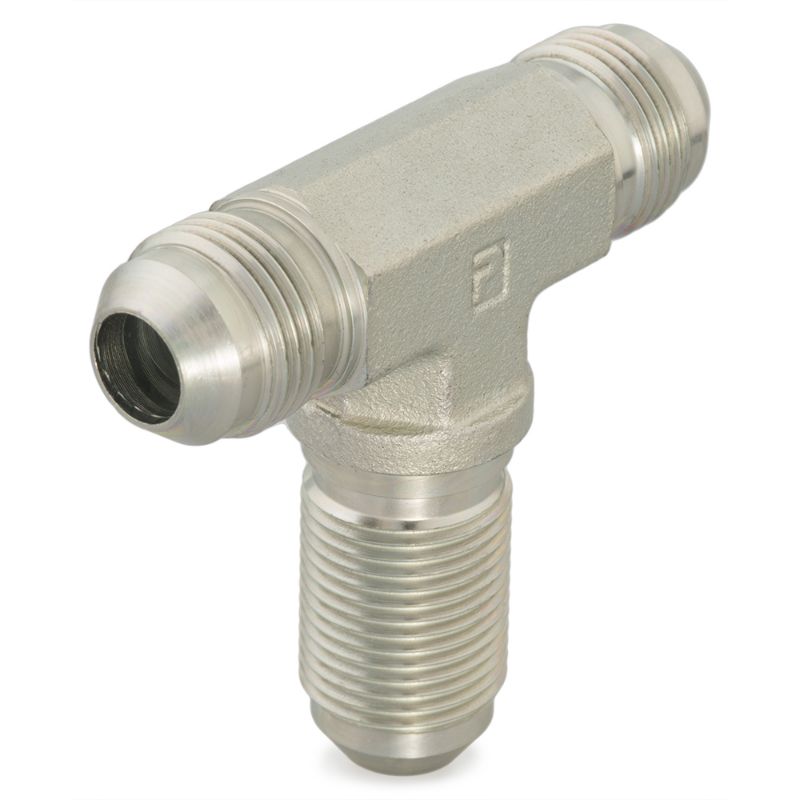

Parker 4 WJTX-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 4 WJTX-SS

$152.42/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Size	na
Maximum Dynamic Pressure	7700 psi	Connection 3 Tube Outside Diameter	6 mm
Connection 3 Thread Size	na	Connection 2 Thread Size	na
Shape	Tee	Connection 3 Size	Male 37° Flare Bulkhead
Specifications Met	SAE J514	Connection 2 Tube Outside Diameter	1/4 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 4 Tube Outside Diameter	na
Body Material	Stainless Steel	Connection 1 Size	Male 37° Flare
Connection 2 Size	Male 37° Flare	Connection Type	37° Flare
Division	Tube Fittings Division	O-Ring Material	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
