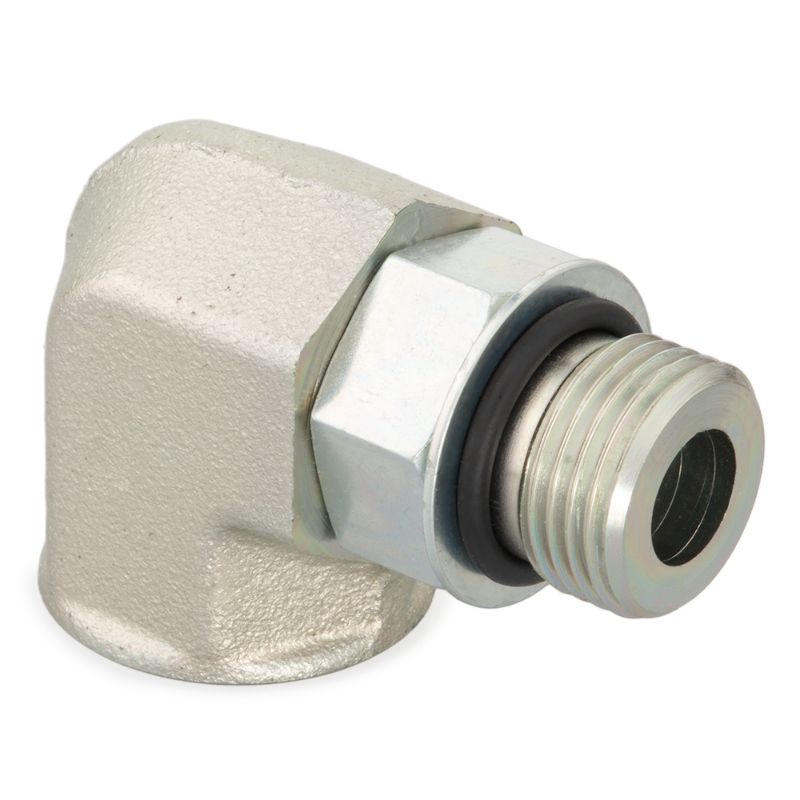

Parker 4 AOEG5-S - Pipe Fittings and Port Adapters

Name: Parker 4 AOEG5-S - Pipe Fittings and Port Adapters
SKU: 4 AOEG5-S
Price: 34.62 USD
Availability: InStock

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

AFP Availability:

30 In Stock

Norfolk, VA	13
North Chesterfield, VA	9
West Knoxville, TN	2
Johnson City, TN	2 (Pickup only)
East Knoxville, TN	2
Richmond, VA	1 (Pickup only)
Ashland, VA	1 (Pickup only)

Partner Available:

301 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 4 AOEG5-S

$34.62/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Fitting Type	Port Adapter	Dimensional Weight	0.01935701438848921 lb
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	Connection 4 Thread Size	na
Length (inch)	na	Body Material	Steel
Connection 3 Style	na	Connection 1 Thread Size (mm)	na
Connection 2 Thread Size (mm)	na	Connection 3 Thread Size (inch)	na
O-Ring Material	90 Durometer Nitrile	Connection 1 Style	Male SAE-ORB
Shape	90° Elbow	Connection 2 Style	Female SAE-ORB
Connection 2 Thread Size (inch)	7/16-20	Connection Style	SAE-ORB to SAE-ORB
Connection 1 Thread Size (inch)	7/16-20

Product resources

Compliance, Certifications & Safety

LR2382882TA-Pipe-and-hose-Adapters (PDF)

Literature and Reference Materials
