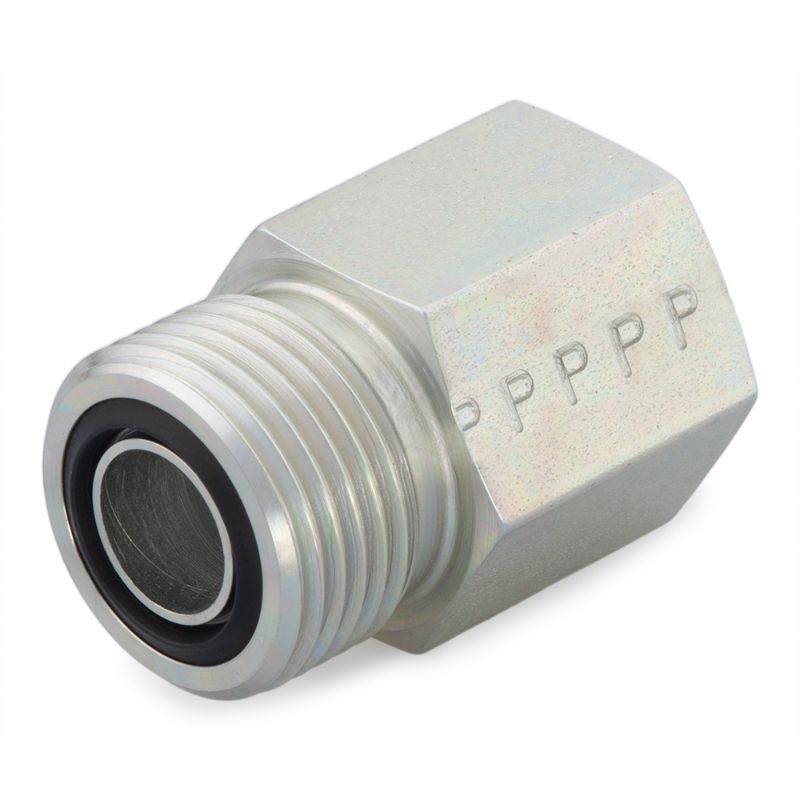

Parker 4-4 GLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	120 In Stock

Brand Parker

Part No. 4-4 GLO-S

$13.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size	1/4-18 inch
Shape	Straight	Connection 2 Tube Outside Diameter	na
Connection 1 Type	Male O-Ring Face Seal	Specifications Met	SAE J1453
Connection 1 Tube Outside Diameter	6 mm	Connection 4 Tube Outside Diameter	na
Body Material	Steel	Connection 2 Type	Female NPT/NPTF
Dimensional Weight	0.03871402877697842 lb	Division	Tube Fittings Division
O-Ring Material	90 Durometer Nitrile	Connection Type	O-ring Face Seal
Connection 4 Type	na	Connection 3 Type	na
Maximum Dynamic Pressure	6000 psi	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
