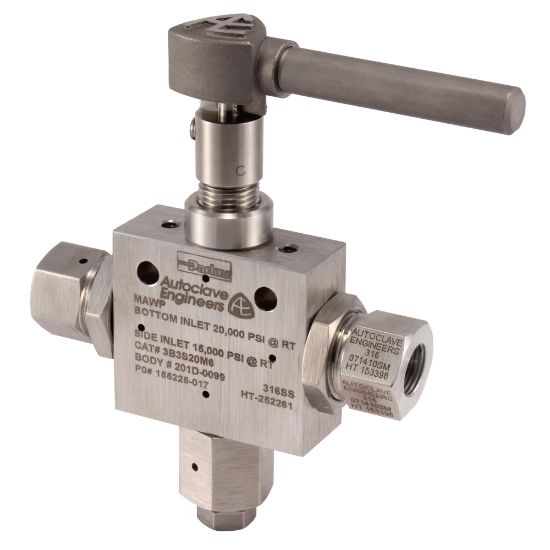

Parker 3B3S20FC4 - Autoclave 3B (3 Way) Ball Valve Series - 20,000 PSI (1379 bar)

Parker Autoclave's 3B Series Ball Valves are manual 3 way valves. These ball valves operate up to 20,000 psi (1,379 bar) with a variety of end connections. These valves feature a trunnion mounted stem with ball orifices from 3/16" to 1/2".

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3B3S20FC4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	1/4	Maximum Operating Pressure	20000
Division	Instrumentation Products Division	Connection Type	Flared Cone
Materials of Construction	Stainless Steel 316 For other options contact factory.	Options	High Temperature
Orifice Size	3/16	Seat Material	PEEK (standard)
Product Series	3 Way	Maximum Working Pressure (psi)	20000
Connection Type	Flared Cone	Orifice Size (inch)	3/16"
Connection Size (inch)	1/4"	Series	3 Way Switching
