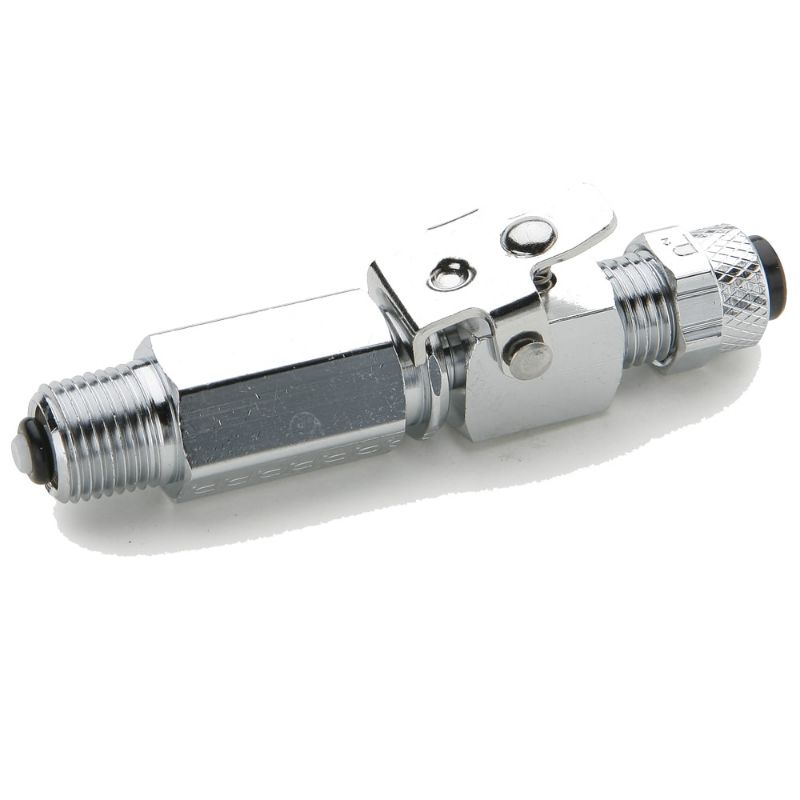

Parker 398P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Name: Parker 398P-4-4 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite
SKU: 398P-4-4
Price: 85.20 USD
Availability: InStock

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

21 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 398P-4-4

$85.20/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	150 psi
Dimensional Weight	0.4357014388489209 lb	Sleeve Material	Acetal Copolymer
Application	Dental	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Nut Material	Chrome Plated Brass	Body Material	Chrome Plated Brass
Minimum Operating Temperature	-17 °C	Maximum Operating Temperature	150 °F
O-Ring Material	Buna N	Division	Fluid System Connectors Division
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Pipe
Connection 2 Thread Size (inch)	1/4	Connection 2 Style	Male Pipe
Body Material	Chrome Plated Brass	Connection 2 Insert Diameter (inch)	na
Shape	Single End Shutoff
