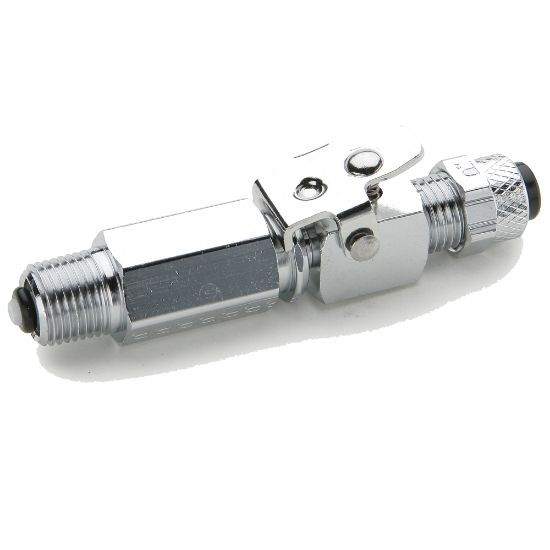

Parker 398P-4-2 - Chrome plated brass couplers for thermoplastic and soft metal tubing, Poly-tite

Parker's Poly-Tite couplers offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 398P-4-2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Maximum Operating Temperature	65 °C
Maximum Operating Pressure	150 psi	Application	Packaging
Minimum Operating Temperature	-17 °C	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
O-Ring Material	Buna N	Nut Material	Chrome Plated Brass
Sleeve Material	Acetal Copolymer	Dimensional Weight	0.4357014388489209 lb
Body Material	Chrome Plated Brass	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Pipe
Body Material	Chrome Plated Brass	Connection 2 Insert Diameter (inch)	na
Shape	Single End Shutoff	Connection 2 Style	THRE

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
