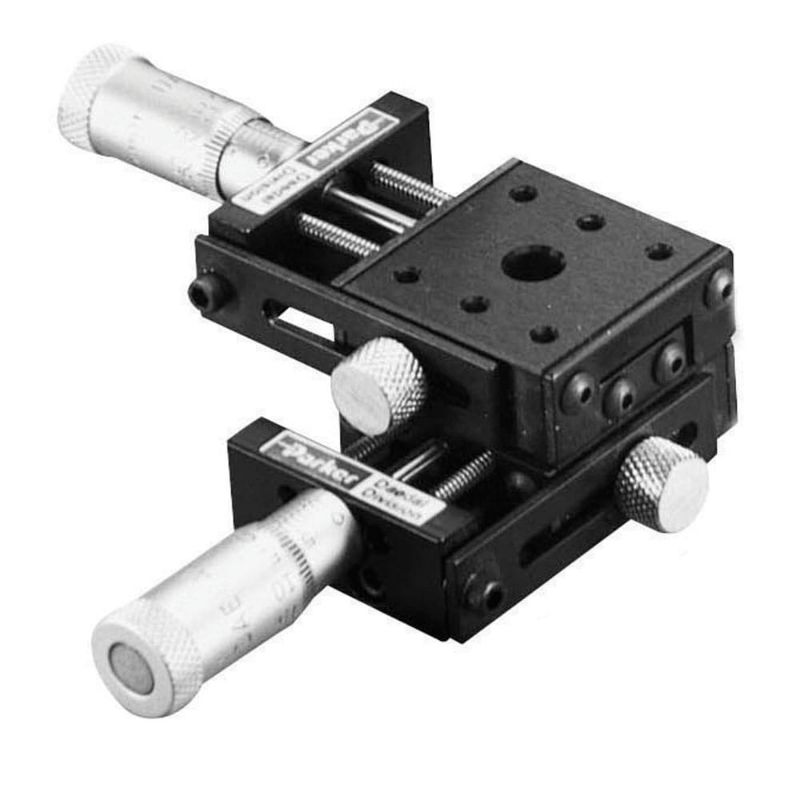

Parker 3952 - Manual Driven, Ball Bearing Guided, Miniature Linear Positioning Stages - 3900 Series

3900-series miniature ball-bearing guided manual linear positioners have an integral drive mechanism and offer travels of up to 0.5", payloads up to 6 lbs, plus exceptional smoothness, extremely low friction and a very good straightness/flatness accuracy

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3952

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Electronic Motion and Controls Division
Number of Axes	1	Mounting Option	English Model
Bearing Type	Ball	Maximum Travel	0.5 inch
Product Type	Linear Stage	Product Series	3900 Series
Width	1.25 inch	Drive Train Type	Imperial Micrometer
Load Capacity	2.7 kg	Travel (inch)	0.5
Axis Count	1	Travel (mm)	(imperial)
Drive Mechanism	Imperial Micrometer	Type	English Model / Side Drive
